Inspection Mode S
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P0033 | TURBOCHARGER/SUPERCHARGER BYPASS VALVE "A" CONTROL CIRCUIT | - | 1 |
| P1378 | PRE-IGNITION DETECTED | - | 1 |
WARNING:
When performing inspection mode S on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
NOTE:
Perform the inspection mode after warming up the engine except that the engine coolant temperature at engine start is specified.
- Using the Subaru Select Monitor, clear the memory of [Engine Control System]. Ref. to COMMON (DIAG)>CLEAR MEMORY .

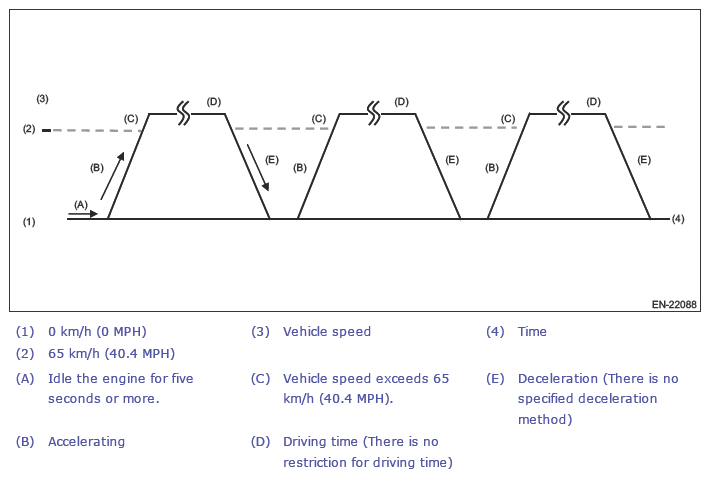

- Drive 3 times according to the drive pattern described below.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
