Inspection Mode Z

DTC	Item	Condition	Number of driving cycles on the detecting condition
P0068	MAP/MAF - THROTTLE POSITION CORRELATION	-	2
P0101	MASS OR VOLUME AIR FLOW SENSOR "A" CIRCUIT RANGE/PERFORMANCE	-	2
P0244	TURBOCHARGER/SUPERCHARGER WASTEGATE SOLENOID "A" RANGE/PERFORMANCE	-	2
P04F0	EVAP SYSTEM HIGH PRESSURE PURGE LINE (CPC2) PERFORMANCE	During acceleration, depress the pedal with the accelerator opening angle of 50% as a reference.	2

WARNING: When performing inspection mode Z on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.

NOTE: Perform the inspection mode after warming up the engine except that the engine coolant temperature at engine start is specified.

Using the Subaru Select Monitor, clear the memory of [Engine Control System]. Ref. to COMMON (DIAG)>CLEAR MEMORY .

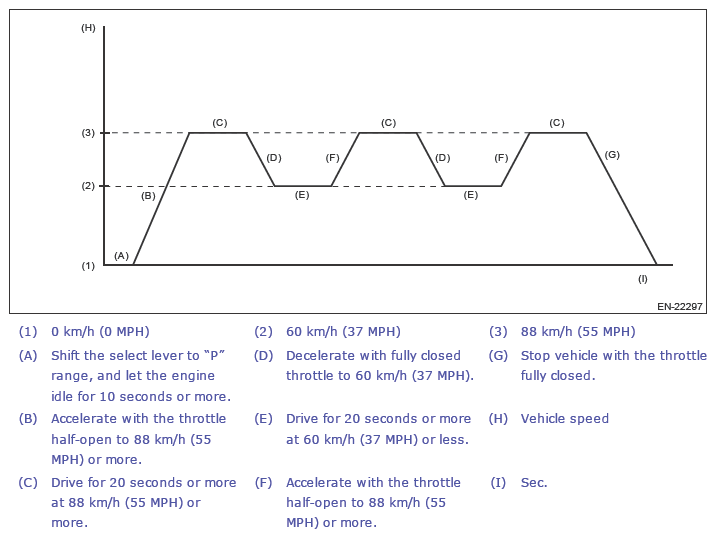

Drive according to the drive pattern described below.

Courtesy of SUBARU OF AMERICA, INC.
Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
