Transmission Control Module

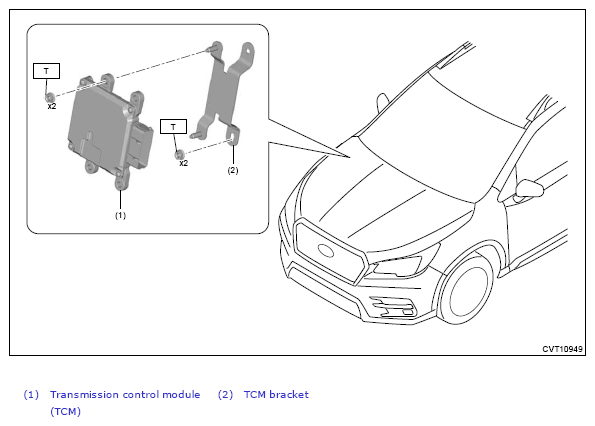

Fig 1: Transmission Control Module Components Location (With Tightening Torque Specification)
G13199905Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
