Select Cable: Installation

Position the select cable as shown in the figure, and install it to the cable plate assembly.
CAUTION:
- If the select cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
- Do not adjust the cable end direction by turning it forcibly to prevent the boot from being twisted.
Tightening torque:

T: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

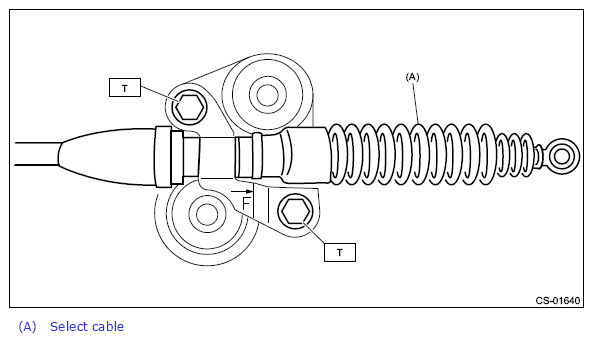

Fig 1: Select Cable Bolts (With Tightening Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the cable plate assembly.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

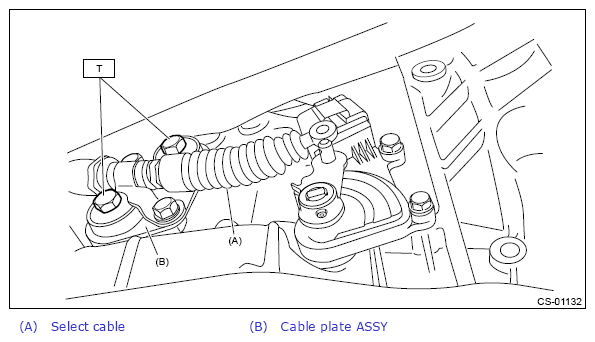

Fig 2: Cable Plate Assembly Bolts (With Tightening Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.

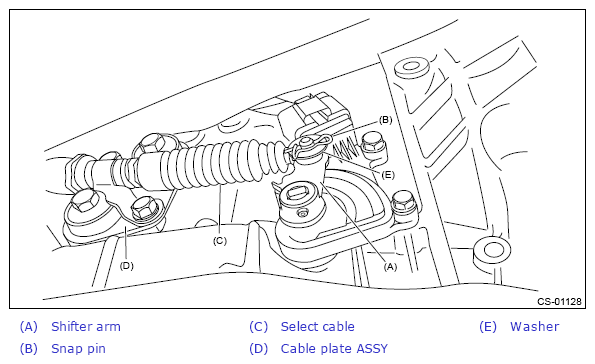

Install the washer and snap pin to the shifter arm.

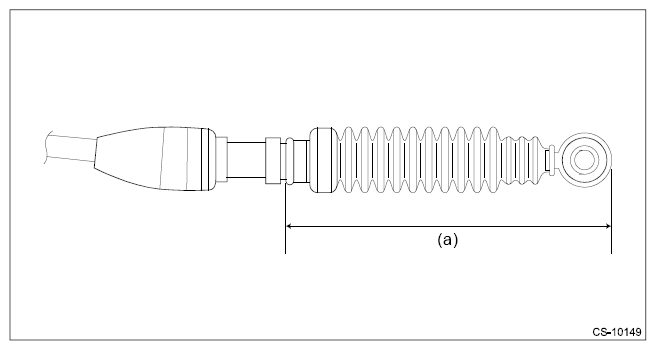

CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

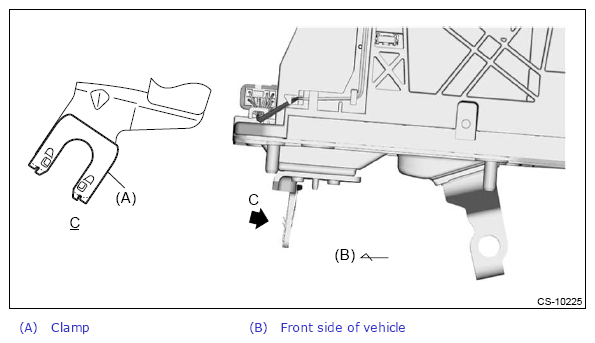

Install new clamp paying attention to the installing direction.

Courtesy of SUBARU OF AMERICA, INC.

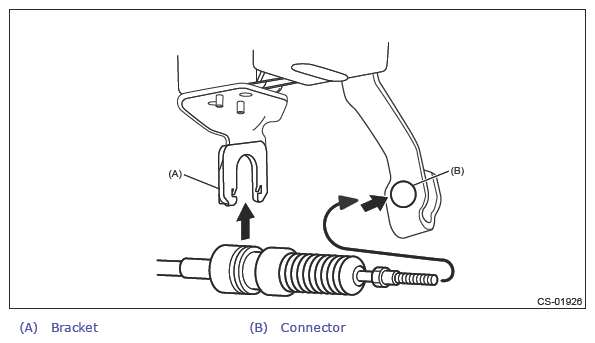

Insert the select cable socket into the bracket, and insert the connector in the arrow direction from the side to assemble the select cable.

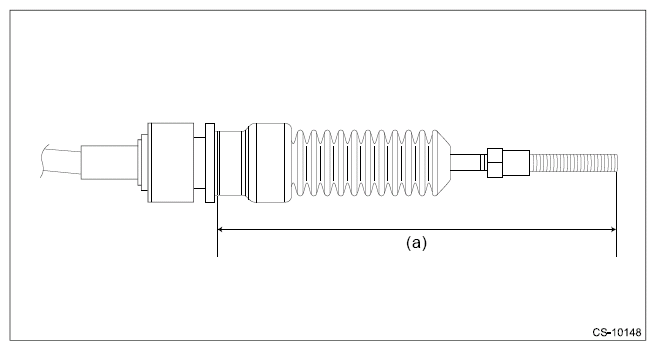

CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Adjust the select cable position. Ref. to CONTROL SYSTEMS>SELECT CABLE>ADJUSTMENT .
Install the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>INSTALLATION>CENTER EXHAUST PIPE (REAR) .
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
