Magnet Switch

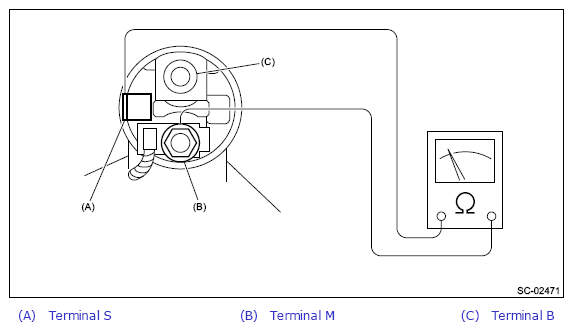

Check the resistance between terminals shown in the following table.

G13199242Courtesy of SUBARU OF AMERICA, INC.
Terminals Standard
Terminal S - terminal M 1 Ω or less
Terminal S - Ground 1 Ω or less
Terminal M - terminal B 1 MΩ or more
