Oil Pressure Switch: Removal

CAUTION: If the engine oil is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

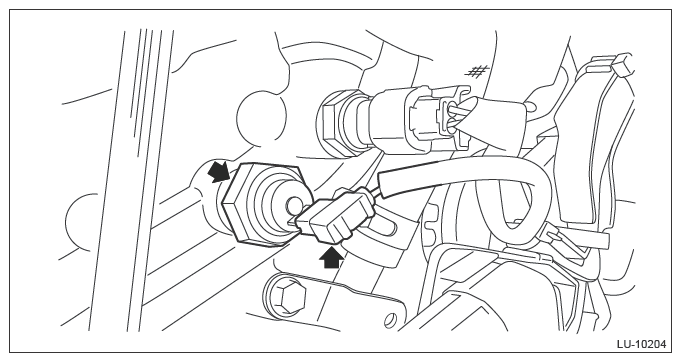

Disconnect the connector and remove the oil pressure switch.
CAUTION: Catch the engine oil using cloth to prevent it from splashing.

Courtesy of SUBARU OF AMERICA, INC.
Remove seal material from the oil pressure switch and the thread portions of the chain cover.
