Fuel Injector RH

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>HIGH PRESSURE FUEL DELIVERY PIPE>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .

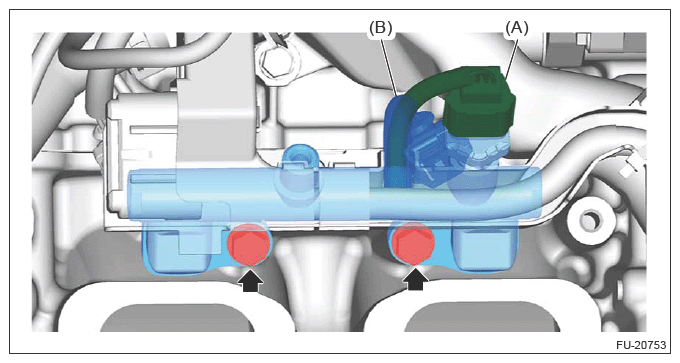

  3. Disconnect the connector (A) from the fuel pressure sensor.
  4. Disconnect the connector (B) from fuel injector #1, and remove the fuel injector pipe.
    G13198217Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the holder from the fuel injector.
    G13198218Courtesy of SUBARU OF AMERICA, INC.
  6. Using ST, remove the fuel injector from the cylinder head.

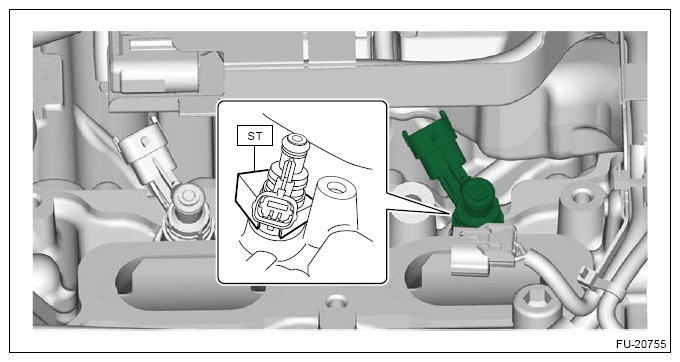

    1. Set the ST to the fuel injector #1.

      Preparation tool:

      ST: ADAPTER R (18362AA060)

      G13198219Courtesy of SUBARU OF AMERICA, INC.

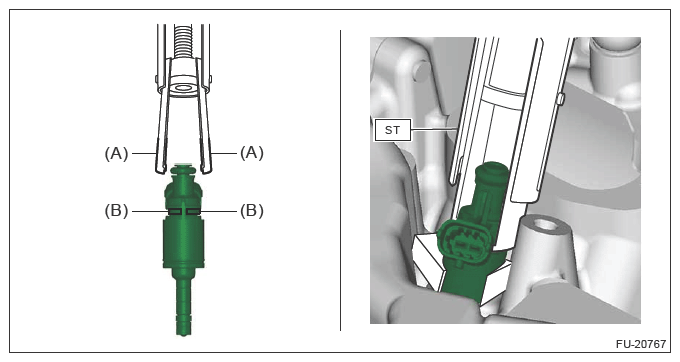

    2. Pinch the fuel injector groove (B) with the claw (A) of the ST.

      Preparation tool:

      ST: INJECTOR REMOVER (18356AA010)

      G13198220Courtesy of SUBARU OF AMERICA, INC.

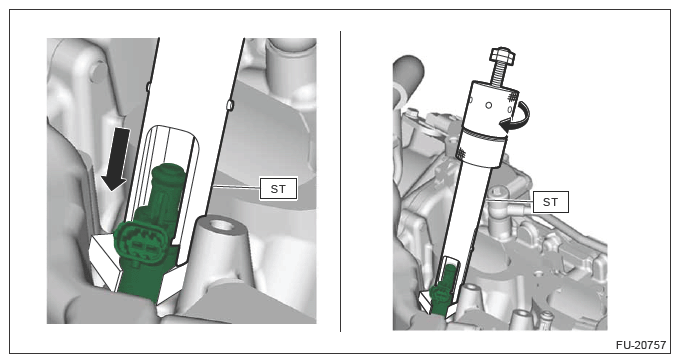

    3. Press the ST to the cylinder head.
    4. Screw in the threaded section of the ST clockwise, and remove the fuel injector from the cylinder head.

      Preparation tool:

      ST: INJECTOR REMOVER (18356AA010)

      G13198221Courtesy of SUBARU OF AMERICA, INC.
