Electric Power Steering Gearbox: Assembly

Install the tie-rod into rack.
Tightening torque:

110 N.m (11.2 kgf-m, 81.1 ft-lb)

NOTE: Check the mating face of rack and tie-rod for foreign matter such as dust etc.

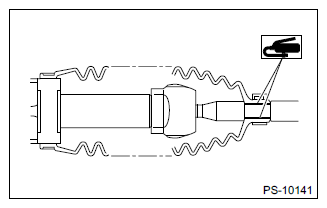

Apply a coat of grease to the tie-rod groove, and then install the boot steering gearbox to the housing.
CAUTION: Assemble the small end of the boot steering gearbox in the tie-rod groove first, and then assemble the large end of the boot steering gearbox in the housing.

NOTE: Make sure that the boot steering gearbox is installed without unusual inflation or deflation.

Courtesy of SUBARU OF AMERICA, INC.

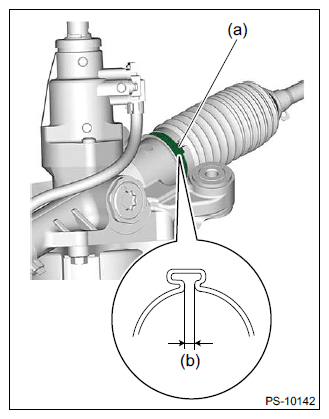

Using the boot clamp pliers, crimp the boot so that the clearance (b) of the band boot (a) crimp portion becomes 2 mm (0.08 in) or less.
NOTE: Use a new band boot.

Courtesy of SUBARU OF AMERICA, INC.

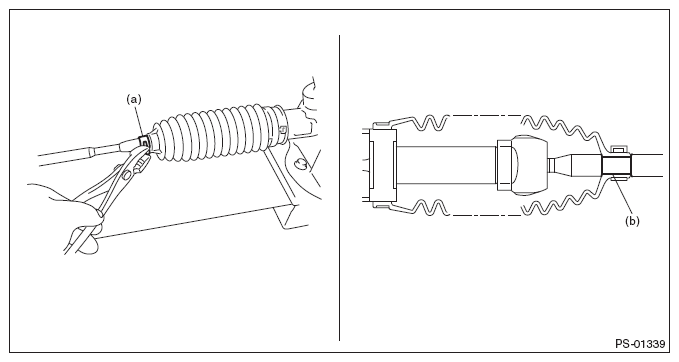

Fix the end of the boot steering gearbox with clip boot tie-rod (a).
After installation, check that the end of the boot steering gearbox is installed to the groove (b) of the tie-rod.

Courtesy of SUBARU OF AMERICA, INC.

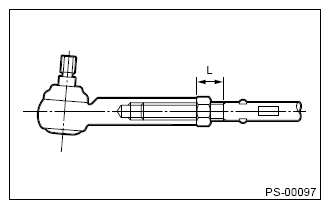

If the tie-rod end has been removed, screw in lock nut and tie-rod end to the threaded portion of tie-rod, and tighten the lock nut temporarily in a position as shown in the figure.
Installed tie-rod length L:

17 mm (0.67 in)

Courtesy of SUBARU OF AMERICA, INC.

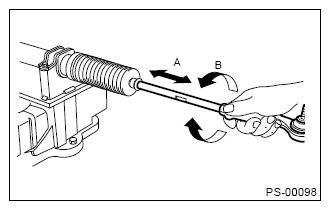

Inspect the steering gearbox assembly as follows:
1. "A" Holding the tie-rod end, repeat lock to lock several times as quickly as possible.
2. "B" Holding the tie-rod end, turn it slowly at a radius several times as large as possible.
3. Finally, make sure that the boot - steering gearbox is installed in the specified position without inflating.
Courtesy of SUBARU OF AMERICA, INC.
Remove the steering gearbox assembly from ST.
