Steering Gearbox

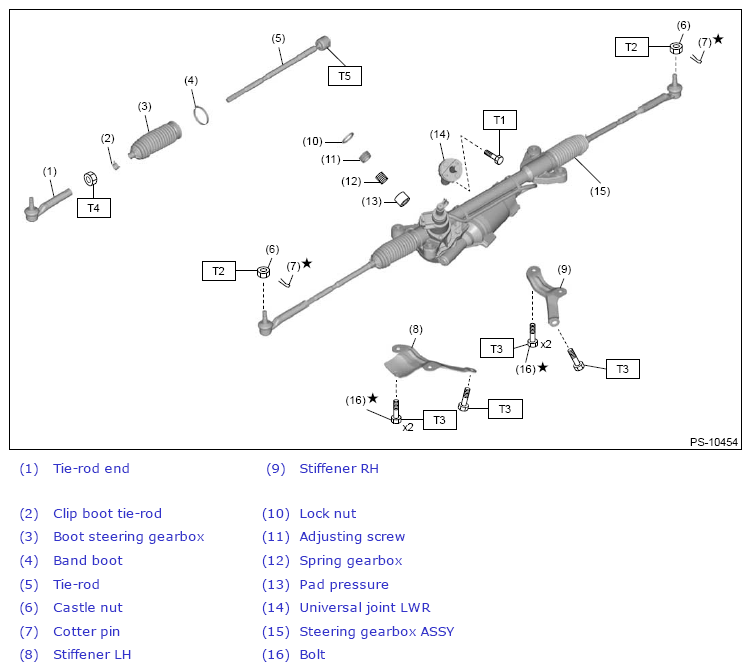

Fig 1: Exploded View Of Steering Gearbox (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24 (2.4, 17.7)

T2: 27 (2.8, 19.9)

T3: 60 (6.1, 44.3)

T4: 85 (8.7, 62.7)

T5: 110 (11.2, 81.1)
