Steering Wheel And Column

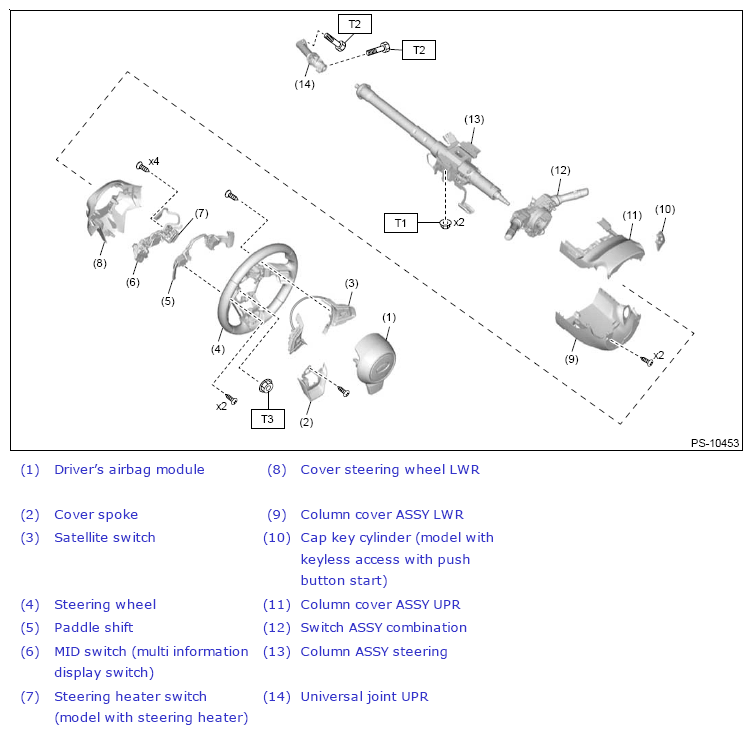

Fig 1: Exploded View Of Steering Wheel And Column (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2: 24 (2.4, 17.7)

T3: 39 (4.0, 28.8)
