Inspection Of Clearance
This table lists various clearances that must be correctly adjusted to ensure the normal vehicle driving without interfering noise, or any other faults.

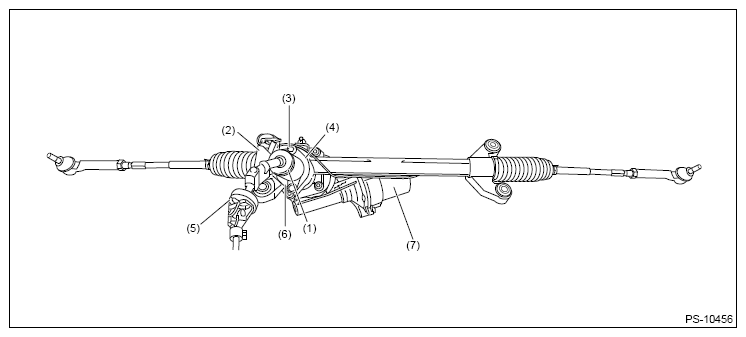

| Location | Minimum allowance mm (in) |
|---|---|
| (1) Stub housing to DOJ | 15 (0.59) |
| (2) Torque sensor to Crossmember | 5 (0.2) |
| (3) Worm wheel housing to Crossmember | here must be no contact |
| (4) Stub housing to Engine mount | 10 (0.39) |
| (5) Universal joint column side yoke to Master cylinder (closest point of approach when the universal joint turns by 360°) | 5 (0.2) |
| (6) Wheel housing to Exhaust pipe | 13 (0.51) |
| (7) Motor ECM to Crossmember | There must be no contact |
