Steering Column: Installation

CAUTION:

When removing, installing or replacing the VDCCM & H/U, VDCCM & H/U bracket, steering wheel or steering angle sensor (steering roll connector), perform "VSC (VDC) Centering Mode" of the VDC. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

Assemble the universal joint UPR to the steering column.
Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

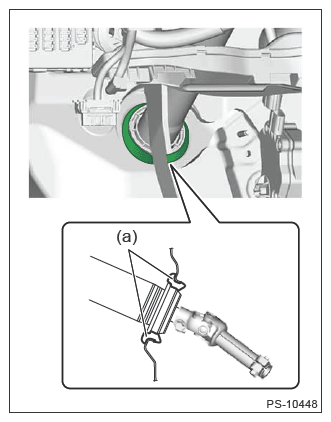

Install the bushing (a) to the toe board from the passenger compartment side.

Courtesy of SUBARU OF AMERICA, INC.
Insert the end of the column assembly steering into the toe board bushing.
CAUTION: Be careful not to insert the universal joint UPR while it is bent, because it may damage the bushing. If the bushing is damaged, be sure to replace it with a new bushing.
Tighten the column assembly steering installation nut located under the beam steering COMPL with the tilt lever fixed.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)
Install the ignition key lock. Ref. to SECURITY AND LOCKS>IGNITION KEY LOCK>REPLACEMENT .
Connect all the connectors under the instrument panel.
Install the universal joint LWR. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>UNIVERSAL JOINT>INSTALLATION>UNIVERSAL JOINT LWR .
CAUTION:
- Always install the universal joint LWR after installing the steering column to avoid damage to the universal joint LWR.
- Always place the tilt lever to the lock position after the steering column is adjusted.
Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)
Install the under cover front.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the column cover assembly and the combination switch assembly.
Align the center position of the steering roll connector. Ref. to AIRBAG SYSTEM>ROLL CONNECTOR>ADJUSTMENT .
Install the steering wheel. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>INSTALLATION .
Clearance:

Between cover assembly column and steering wheel: 4 - 6 mm (0.16 - 0.24 in)
Install the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>INSTALLATION .
Install the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>INSTALLATION .
Connect the connector, and install the cover LWR driver.
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY>GROUND TERMINAL REMOVAL OR INSTALLATION .
