Steering Wheel: Assembly

CAUTION:
  • Securely install the switch and the cover steering wheel LWR. Improper insertion of the pins or claws of the switch and the cover steering wheel LWR may cause improper installation.
  • When installing the heater steering wheel and the cover steering wheel LWR for models with steering heater, be careful of the following:
    • Attach the heater element to the cover steering wheel LWR so that it is not twisted or does not interfere with switches.
    • Be careful not to allow the heater element to be caught in steering frame, unit and the cover steering wheel LWR.
  1. Install the MID switch.
  2. Install the steering heater switch and steering heater unit to the cover steering wheel LWR. (Model with steering heater)
  3. Install the satellite switch.
  4. Install the cover steering wheel LWR.

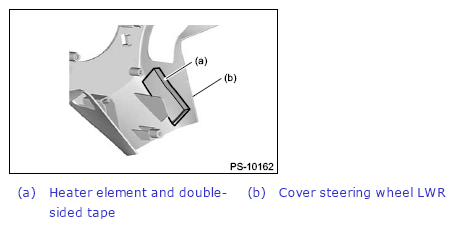

    NOTE: Secure the heater element on the cover steering wheel LWR using double-sided tape. Refer to the figure below to attach the heater element and double-sided tape symmetrically.
    G13200395Courtesy of SUBARU OF AMERICA, INC.
  5. Install the cover spoke.
  6. Install the paddle shift switch.
