Paddle Shift Switch

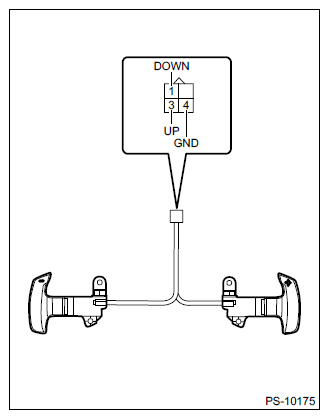

- Measure the resistance between connector terminals.
Preparation tool:
Circuit tester
Terminal No. Inspection conditions Standard 3 - 4 Operate the + side of paddle shift assembly and hold it. Less than 10 Ω 1 - 4 Operate the - side of paddle shift assembly and hold it. Less than 10 Ω 1 - 4
3 - 4Do not operate the paddle shift assembly. 1 MΩ or more - Replace the paddle shift switch if the inspection result is not within the standard value.
