Differential Gear Oil: Replacement
CAUTION:
- Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
- If the differential gear oil is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
- Lift up the vehicle.

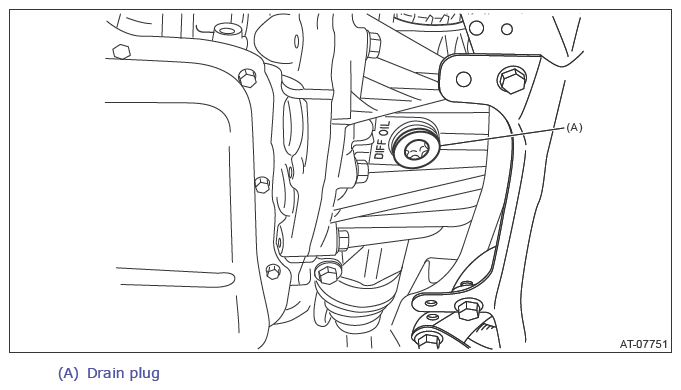

- Drain the differential gear oil by removing drain plug using TORX® bit T70.
- With a new gasket, install the drain plug using the TORX® bit T70.
Tightening torque:
70 N.m (7.1 kgf-m, 51.6 ft-lb)

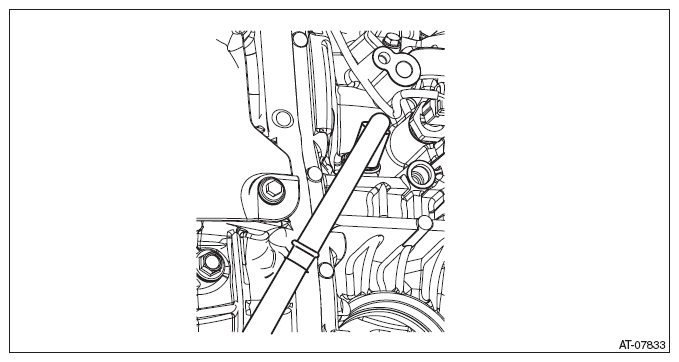

- Fill with differential gear oil through the oil charge pipe.
Recommended gear oil:
Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>GENERAL DESCRIPTION>SPECIFICATION .
Gear oil capacity:
Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>GENERAL DESCRIPTION>SPECIFICATION .
- Adjust the level of differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DIFFERENTIAL GEAR OIL>ADJUSTMENT .
