Drive Plate: Installation

  1. Temporarily install the drive plate and reinforcement drive plate.

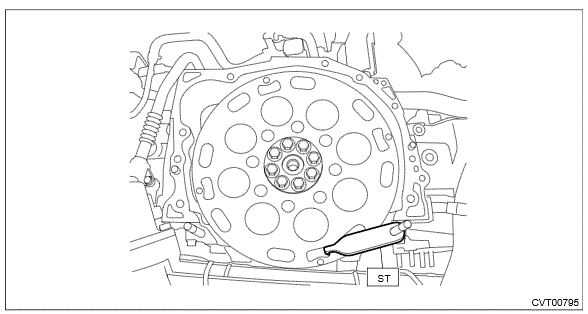

  2. Set the ST in the position shown in the figure.

    Preparation tool:

    ST: CRANKSHAFT STOPPER (498497300)

    G13200114Courtesy of SUBARU OF AMERICA, INC.
  3. Tighten the drive plate mounting bolt in two stages.
    NOTE: Fix the engine unit.
    1. Tighten the drive plate mounting bolt.

      Tightening torque:

      30 N.m (3.1 kgf-m, 22.1 ft-lb)

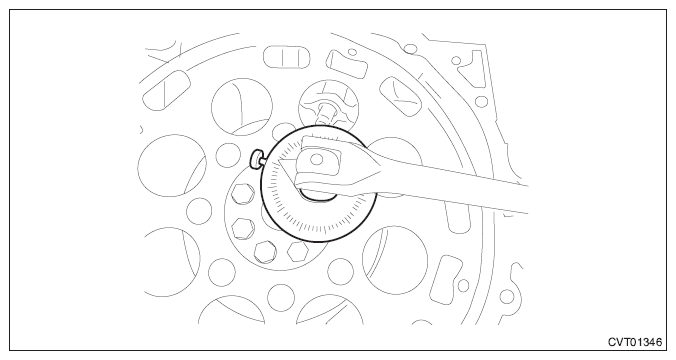

    2. While checking the tightening angle with the angle gauge, tighten the drive plate mounting bolts to the specified angle.

      Tightening angle:

      30° - 35°

      G10293263Courtesy of SUBARU OF AMERICA, INC.
  4. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>INSTALLATION .
