Front Reduction Drive Gear: Adjustment
- Measure height "A" from the ST upper face to the ball bearing end face using the ST.
Preparation tool:
ST: GAUGE (398643600)

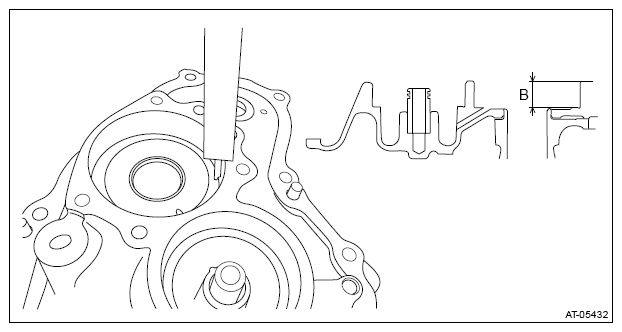

- Measure depth "B" from the converter case cover upper face to the ball bearing catch surface.

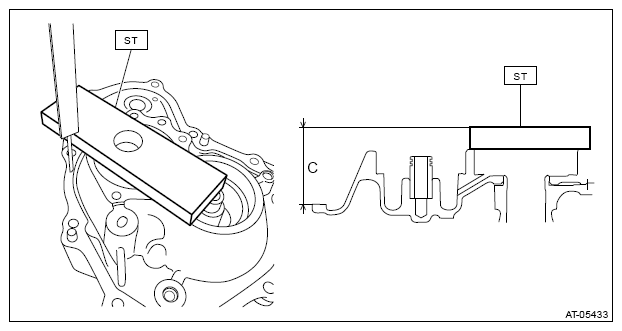

- Using the ST, measure height "C" from the ST upper face to the converter case cover mating surface.
Preparation tool:
ST: GAUGE (398643600)
- Using the following formula, calculate clearance "T" to select shims.
Calculation formula:
T mm = (A - 15) - ((C - 15) - B)
[T in = (A - 0.591) - ((C - 0.591) - B)]
T: Clearance
A: Depth from the ST upper face to the ball bearing end surface
B: Depth from the converter case cover upper face to the ball bearing catch surface
C: Height from the ST upper face to the converter case cover mating surface
15 mm (0.591 in): Thickness of ST
| Clearance "T" mm (in) | Thickness of shim mm (in) |
|---|---|
| 1.070 - 1.174 (0.042 - 0.045) | 1.0 (0.039) |
| 1.175 - 1.274 (0.046 - 0.049) | 1.1 (0.043) |
| 1.275 - 1.374 (0.050 - 0.053) | 1.2 (0.047) |
| 1.375 - 1.474 (0.054 - 0.057) | 1.3 (0.051) |
| 1.475 - 1.580 (0.058 - 0.062) | 1.4 (0.055) |
