Parking Pawl: Installation
- Set the range select lever to the "N" range.

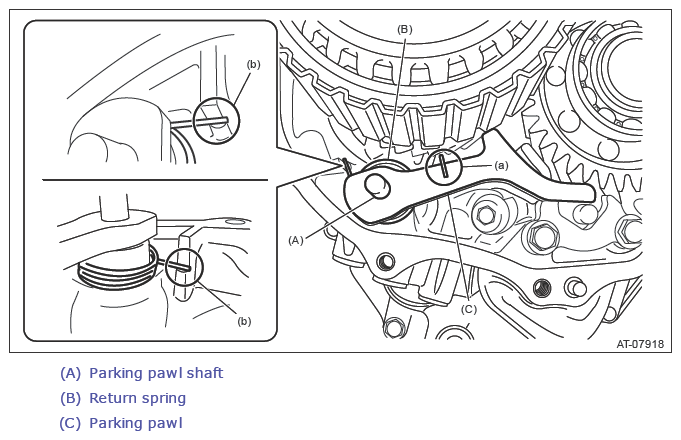

- Install the parking pawl shaft, return spring and parking pawl.NOTE:
- Make sure that the end of return spring sticks out of parking pawl as shown in (a).
- Make sure that the other end contacts the rib of intermediate case as shown in (b).
- Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION .
- Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>INSTALLATION .
