AT Shift Lock Solenoid and "P" Range Switch: Installation

Insert the solenoid unit terminals to the harness connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the solenoid unit.
NOTE:

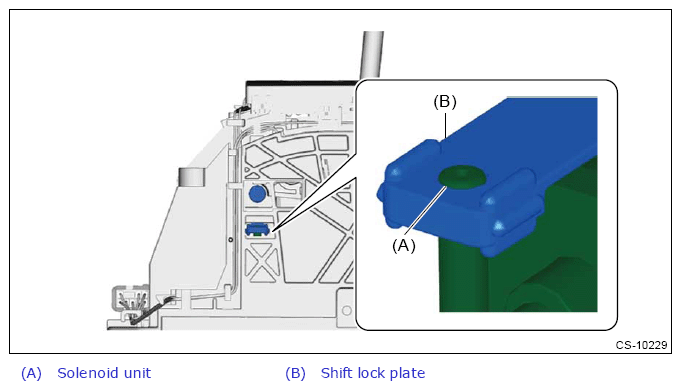

- Insert the solenoid unit while raising the shift lock plate upward by finger, and insert the tip of solenoid unit into the hole of shift lock plate.
- Apply 0.2 g (0.007 oz) of Multemp D to the tip of solenoid unit.
- After installation, make sure that the tip of solenoid unit is securely inserted in the shift lock plate by visually checking from the side of select lever COMPL.
Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the harness to the select cover COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Attach the harness connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the select lever COMPL. Ref. to CONTROL SYSTEMS>SELECT LEVER>INSTALLATION .
