Select Cable: Removal

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Release the shift lock using a screwdriver, etc. to shift the select lever to the "N" range.

Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .

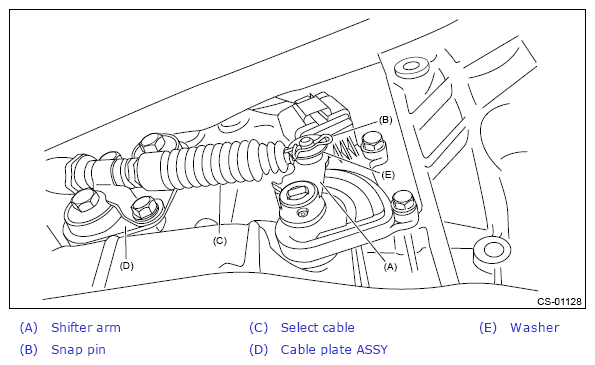

Remove the snap pin and washer from the shifter arm and remove the select cable from the shifter arm.
CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

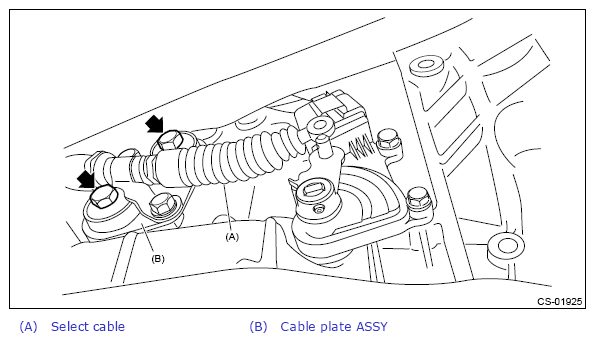

Remove the cable plate assembly from the transmission case.

Courtesy of SUBARU OF AMERICA, INC.

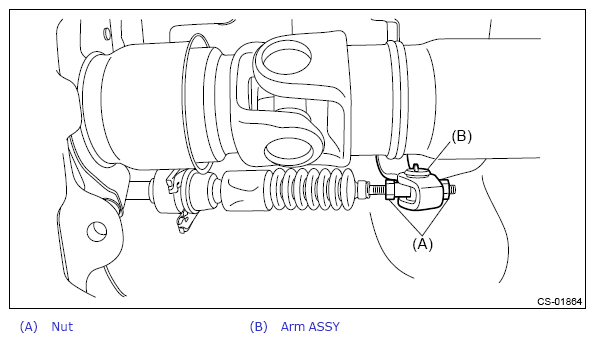

Disconnect the select cable from the arm assembly.
CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

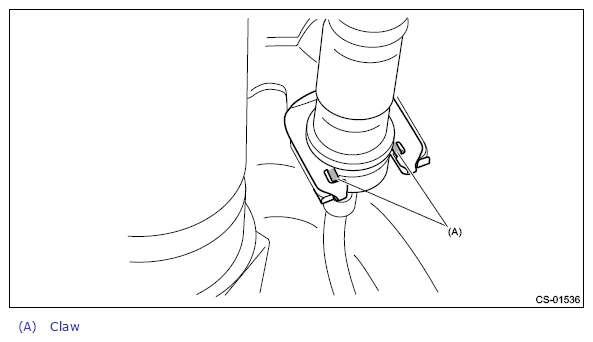

Raise the claw of clamp to remove the select cable from bracket.

Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from the cable plate assembly.
