Ignition Coil And Spark Plug (FA20): Installation

1. Install the two spark plugs.

   Standard value: T=17N.m {174kgf.cm} {12.5ft.lbf}

1. Using 2 bolts, install the ignition coil ASSY.

   Standard value: T=8.5N.m {87kgf.cm} {6.3ft.lbf}

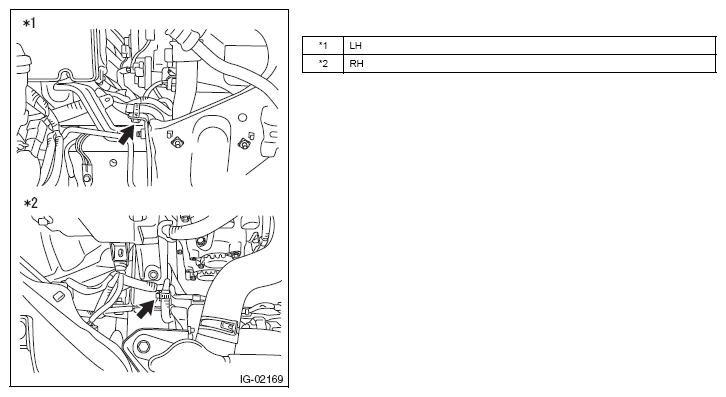

2. Connect 2 connectors of the ignition coil ASSY.

1. Install the two spark plugs.

   Standard value: T=17N.m {174kgf.cm} {12.5ft.lbf}

1. Using 2 bolts, install the ignition coil ASSY.

   Standard value: T=8.5N.m {87kgf.cm} {6.3ft.lbf}

2. Connect 2 connectors of the ignition coil ASSY.

1. Using 2 bolts, install the intake manifold protector (bank 2 side).

   Standard value: T=19N.m {194kgf.cm} {14.0ft.lbf}

2. Install the fuel hose bracket.

   Standard value: T=7.5N.m {76kgf.cm} {5.5ft.lbf}

1. Using the SST, lift the engine ASSY.

   SST 99099AJ000, 18679AA020

   Courtesy of SUBARU OF AMERICA, INC.

2. Remove the SST.

   SST 18632AA020

Courtesy of SUBARU OF AMERICA, INC.

1. Install the two nuts of the new engine mounting.

   Standard value: T=60N.m {612kgf.cm} {44.2ft.lbf}

2. Remove the rope which secures the joint pipe to the front suspension crossmember SUB-ASSY.

1. Remove the SST from the vehicle.

   SST 99099AJ000, 18679AA020

2. Remove the SST from the cylinder block.

   SST 12281-38150, 90119-14120

   Courtesy of SUBARU OF AMERICA, INC.

3. Connect the engine wiring with the clamp.

1. Connect the engine wiring with the bolt and three clamps. (Transmission A/T)

   Standard value: T=11N.m {112kgf.cm} {8.1ft.lbf}

2. Using the clamp, connect the bulkhead harness.
3. Using 4 clamps, connect the engine wire.

Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
