Fuel Pump ASSY (FA20/High Fuel Pressure): Installation

Pump drive case ASSY installation

Apply THREE BOND 1217G/1217H or equivalent to the mating surface of pump drive case ASSY.

Install the pump drive case ASSY with the three bolts.

Standard value: T=19Nm {194kgfcm} {14.0ftlbf}

CAUTION:

Do not allow the liquid gasket to accumulate in the oil passage in the pump drive case ASSY.
Install within 5 min. after applying liquid gasket.
Do not fill the engine oil within 2 hours after the installation.

Do not start the engine within 2 hours after the installation.

Courtesy of SUBARU OF AMERICA, INC.

Fuel pump lifter installation

Turn the crankshaft until the flat surface of cam faces upward from the fuel pump ASSY installation hole of cam cap.
NOTE: When installing the fuel pump ASSY, since the cam convex section does not push up the pump drive surface due to the work above, the fuel pump ASSY and fuel delivery pipe NO. 2 can be installed easily.

Apply new engine oil to the pump drive cam and fuel pump lifter portion.

Courtesy of SUBARU OF AMERICA, INC.

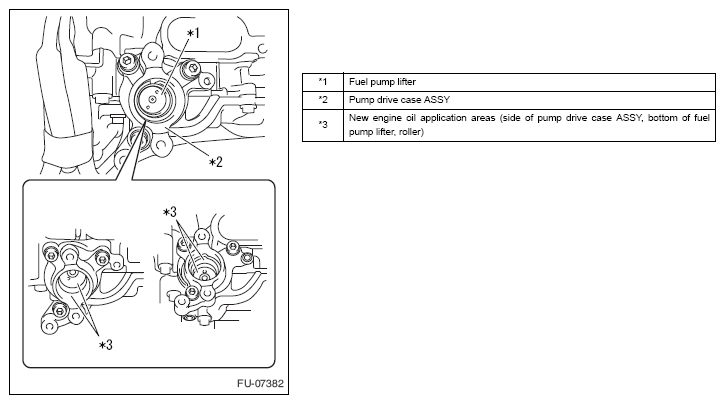

Apply new engine oil to the pump drive case ASSY side surface and fuel pump lifter bottom surface, and then install the fuel pump lifter to the pump drive case ASSY.

Fuel pump ASSY installation
1. Install a new O-ring to the fuel pump ASSY.
2. Install the fuel pump ASSY with the two bolts using a TORX PLUS socket wrench 40IP.
  Standard value: T=21Nm {214kgfcm} {15.5ftlbf}
3. Connect the fuel pump connector.
Fuel delivery pipe SUB-ASSY connection
1. Connect the fuel delivery pipe SUB-ASSY with a new gasket and the union bolt.
  Standard value: T=31Nm {316kgfcm} {22.9ftlbf}
Fuel delivery pipe NO. 2 connection (Refer to Unit inspection )
Intake manifold installation (Refer to INSTALLATION )
