Fuel Pump ASSY (FA20/High Fuel Pressure): Removal

Intake manifold removal (Refer to REMOVAL )
Fuel delivery pipe NO. 2 removal (Refer to REMOVAL )

Courtesy of SUBARU OF AMERICA, INC.
Disconnection of fuel delivery pipe SUB-ASSY
1. Remove the union bolt and gasket to disconnect the fuel delivery pipe SUB-ASSY.
Courtesy of SUBARU OF AMERICA, INC.
Fuel pump ASSY removal

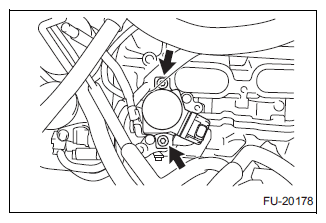

1. Remove the two bolts with a TORX PLUS socket wrench 40IP to remove the fuel pump ASSY.
Courtesy of SUBARU OF AMERICA, INC.
Fuel pump lifter removal
1. Remove the fuel pump lifter from the pump drive case ASSY.
Courtesy of SUBARU OF AMERICA, INC.
Pump drive case ASSY removal
1. Remove the three bolts and remove the pump drive case ASSY.
