Knock Sensor: Installation
- Install the knock sensor to the cylinder block, and connect the connector to the knock sensor.NOTE:

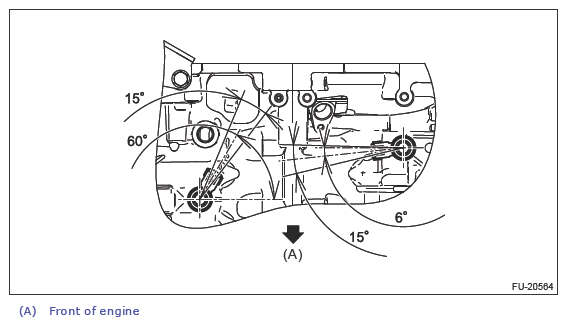

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
- Make sure that the knock sensor and its connector do not touch the adjacent parts.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Install the air intake boot. Refer to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>Air Intake Boot>INSTALLATION .
- Connect the battery ground terminal. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
