MT Gear Shift Cable: Removal

  1. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the front exhaust pipe. Refer to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
  4. Remove the center exhaust cover.
    G13230505Courtesy of SUBARU OF AMERICA, INC.

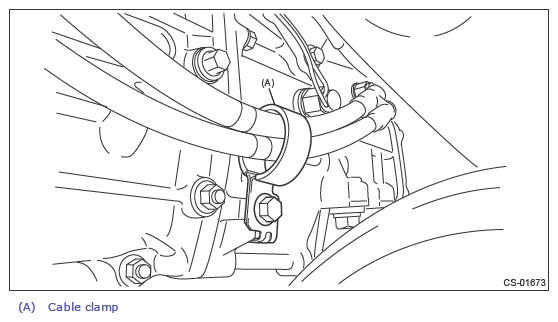

  5. Remove the cable clamp.
    G13232390Courtesy of SUBARU OF AMERICA, INC.

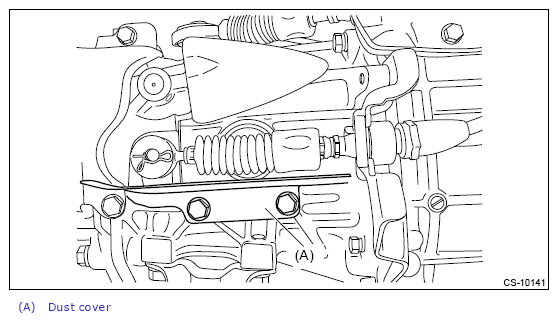

  6. Remove the dust cover.
    G13232391Courtesy of SUBARU OF AMERICA, INC.

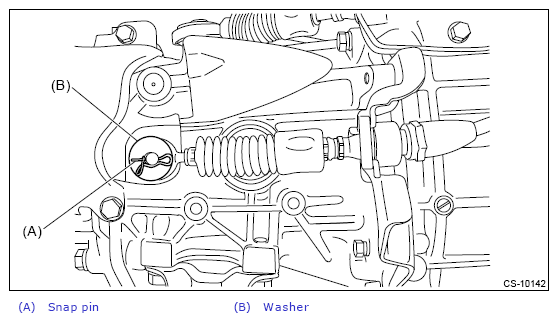

  7. Remove the snap pin and washer.
    G13232392Courtesy of SUBARU OF AMERICA, INC.

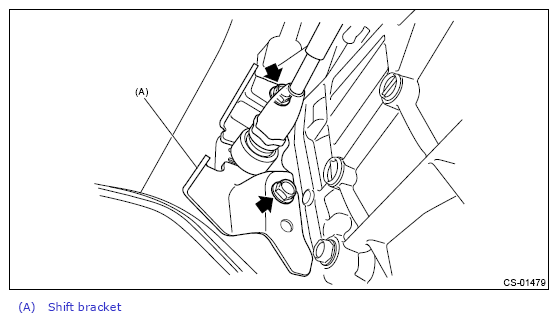

  8. Remove the bolts holding the shift bracket.
    G13232393Courtesy of SUBARU OF AMERICA, INC.

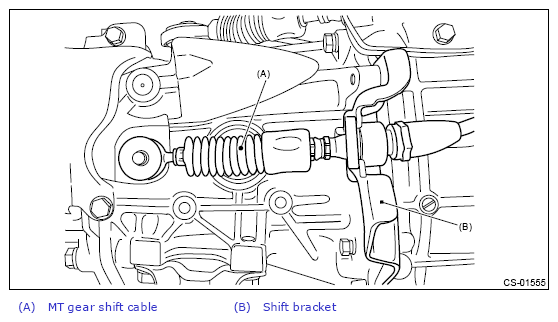

  9. Remove the shift bracket together with the MT gear shift cable.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392911Courtesy of SUBARU OF AMERICA, INC.
    G13232395Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the cable cover plate.
    G10267862Courtesy of SUBARU OF AMERICA, INC.

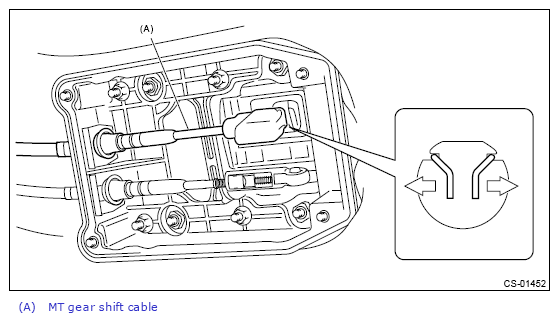

  11. Disconnect the MT gear shift cable.
    CAUTION:
    • Be careful not to deform the cable inner.
    • Do not apply excessive load while holding the part (a).
    G12392914Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Pull out down the MT gear shift cable to spread the spring.
    G13232398Courtesy of SUBARU OF AMERICA, INC.

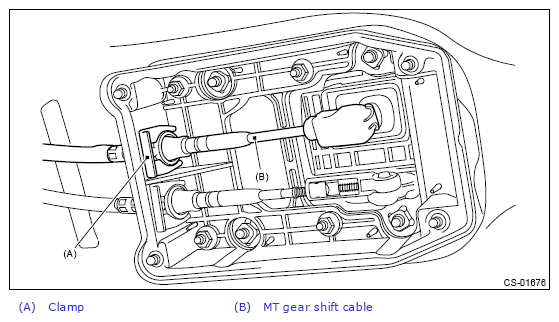

  12. Remove the clamp.
    G13232399Courtesy of SUBARU OF AMERICA, INC.
  13. Pull out the MT gear shift cable.
CAUTION:
  • Do not bend MT gear shift cable at a sharp angle.
  • Do not twist the cable inner excessively.
G09481231Courtesy of SUBARU OF AMERICA, INC.
