Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  3. Lift up the vehicle.
  4. Remove the center exhaust cover.
    • Except for Crosstrek hybrid model
      G13230505Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek hybrid model
    G13230506Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the inhibitor cover. (Crosstrek hybrid model)
    G13232270Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the select cable from the transmission main body.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392796Courtesy of SUBARU OF AMERICA, INC.
    • Except for Crosstrek hybrid model
      G13225470Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek hybrid model
    G13232273Courtesy of SUBARU OF AMERICA, INC.

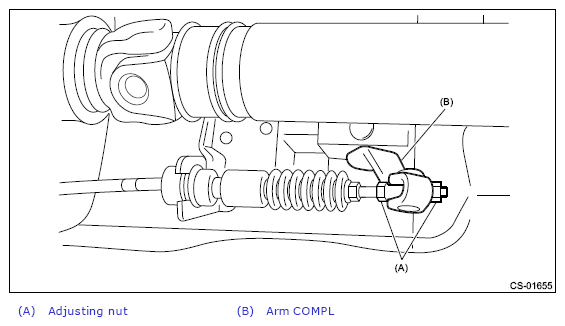

  7. Disconnect the cable from arm COMPL.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392841Courtesy of SUBARU OF AMERICA, INC.
    G13232322Courtesy of SUBARU OF AMERICA, INC.

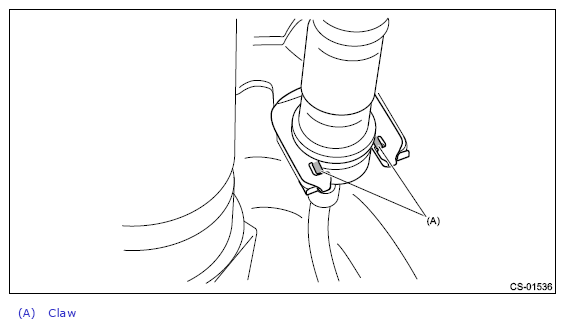

  8. Raise the claw of clamp to remove the cable from bracket.
    G13232323Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the select cable from plate assembly.
