Battery Sensor

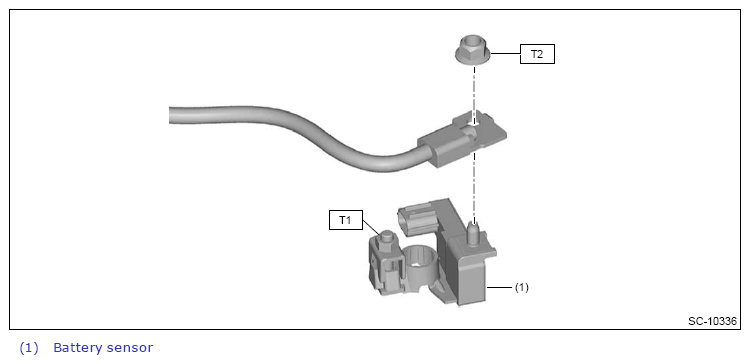

Fig 1: Battery Sensor Component (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 7.5 (0.8, 5.5)

STARTING/CHARGING SYSTEMS (H4DO)
