Ball Joint: Installation

1. Install the ball joint COMPL to the front axle housing.
   CAUTION:

   • Do not apply grease to the tapered portion of ball stud.
   • Be careful not to damage the boot of the joint.

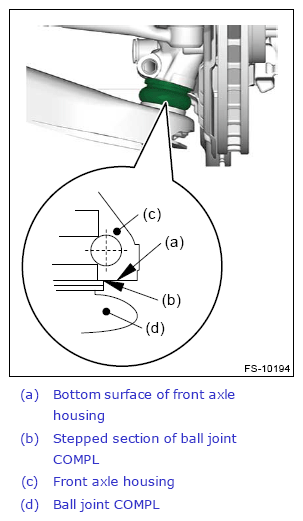

   • Before tightening, make sure the bottom surface of front axle housing and stepped section of ball joint COMPL are in contact.

   Courtesy of SUBARU OF AMERICA, INC.

   Tightening torque:

   50 N.m (5.1 kgf-m, 36.9 ft-lb)

2. Install the ball joint COMPL into the arm COMPL front.
   1. Connect the ball joint COMPL to the arm COMPL front.

      Tightening torque:

      39 N.m (4.0 kgf-m, 28.8 ft-lb)

      NOTE: If the ball stud hole and the cutout portion of the castle nut are not aligned after tightening, tighten the castle nut within the range of 60° to align with each other.
   2. Install a new cotter pin.
3. Install the under cover front.

   Tightening torque:

   18 N.m (1.8 kgf-m, 13.3 ft-lb)

4. Lower the vehicle, and install the front wheels.

Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)
