Drive Plate: Installation

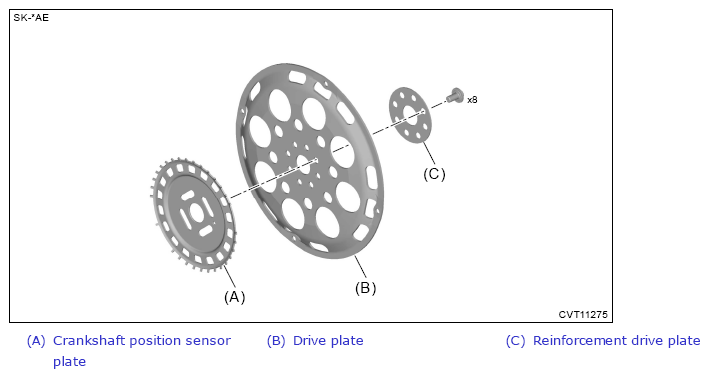

Temporarily attach the reinforcement drive plate, drive plate and crankshaft position sensor plate, and set the ST.
NOTE:
- Align the knock pin hole of the crankshaft position sensor plate to the knock pin of the crankshaft to secure the knock pin.
- Make sure to install in the right direction.
Courtesy of SUBARU OF AMERICA, INC.

Preparation tool:

ST: CRANKSHAFT STOPPER (498497300)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts securing the drive plate.
1. Tighten the bolts securing the drive plate.
  Tightening torque:

  30 N.m (3.1 kgf-m, 22.1 ft-lb)
2. Using the angle gauge, tighten the bolts securing the drive plate to the specified angle.
  Tightening angle:

  30°- 35°
Install the Transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION ASSEMBLY>INSTALLATION .
