Front Differential Gear

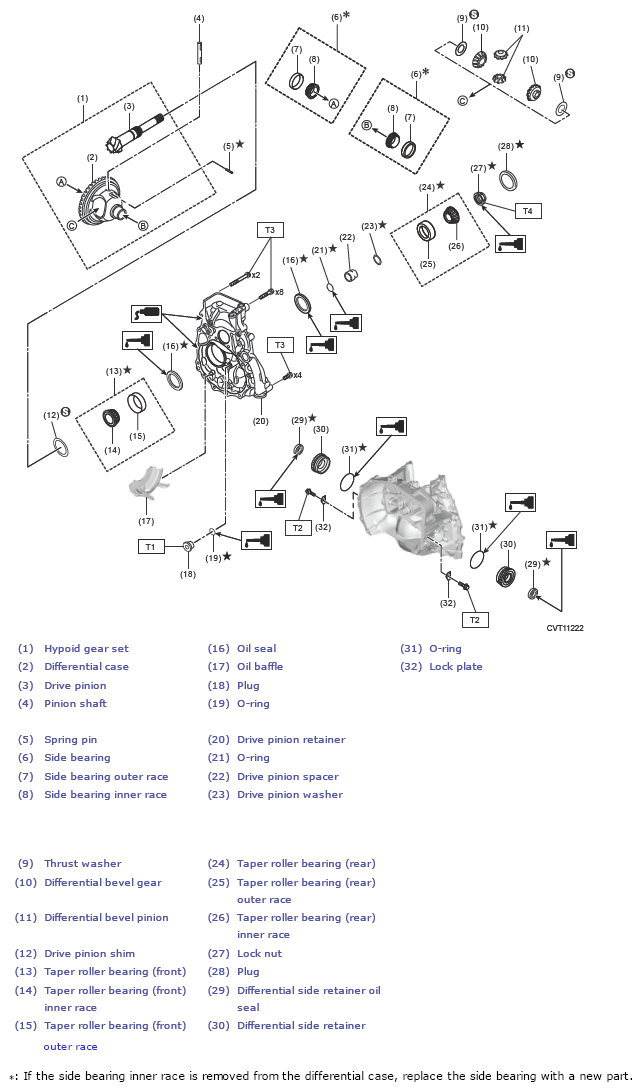

Fig 1: Front Differential Gear Components (With Torque Specification)

G13225535

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 22 (2.2, 16.2)

T2: 25 (2.5, 18.4)

T3: 43 (4.4, 31.7)

T4: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>DRIVE PINION>ASSEMBLY .
