Select Cable: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
    G13225109Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the center exhaust cover.
    G13224646Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the select cable from the transmission body.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392796Courtesy of SUBARU OF AMERICA, INC.
    G13225470Courtesy of SUBARU OF AMERICA, INC.

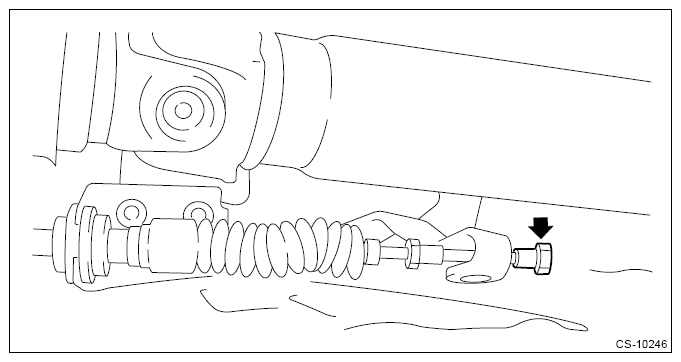

  5. Remove the adjusting nut (rear).
    G13225508Courtesy of SUBARU OF AMERICA, INC.
  6. Raise the claw of clamp to remove the clamp and remove the select cable.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392841Courtesy of SUBARU OF AMERICA, INC.
    G13225510Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the select cable from the cable plate.
    G13225508Courtesy of SUBARU OF AMERICA, INC.
