Crankshaft Position Sensor: Installation

Install the crankshaft position sensor and connect the connector.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Install the engine ground and the harness case.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

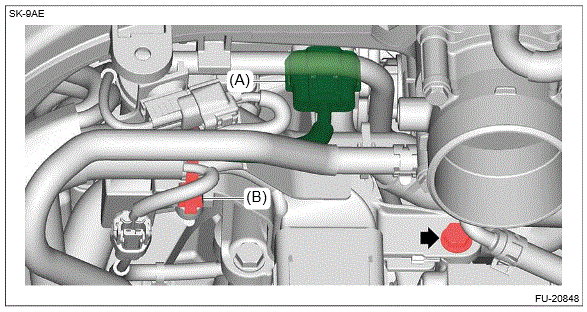

Install the clip (B) to the engine wiring harness bracket.
Connect the connector (A).

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
