Engine Wiring Harness

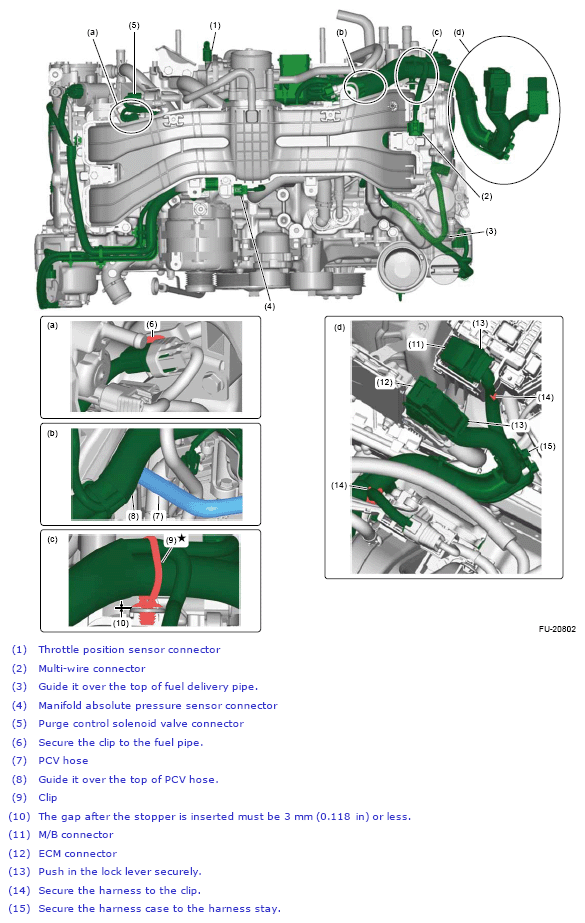

• Structural diagram 1

Courtesy of SUBARU OF AMERICA, INC.

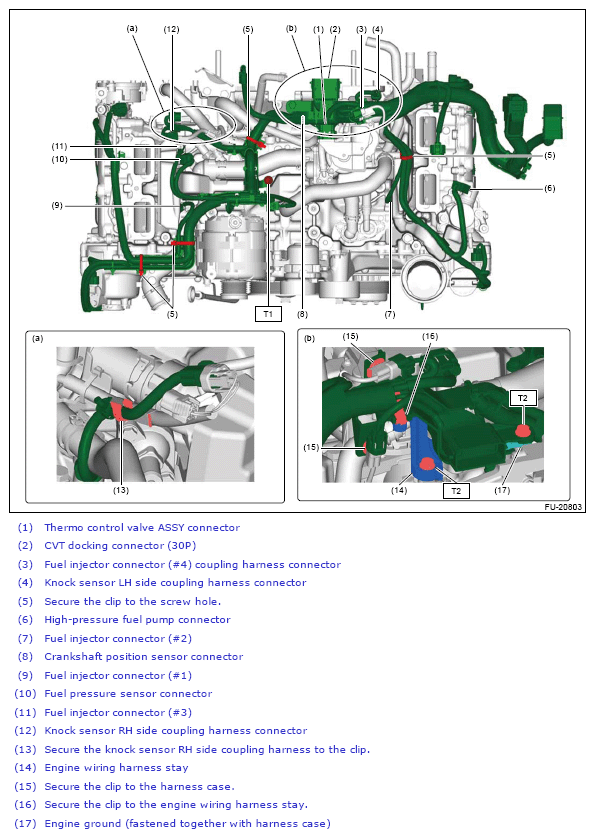

• Structural diagram 2

Fig 1: Engine Wiring Harness (Components With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 19 (1.9, 14.0)

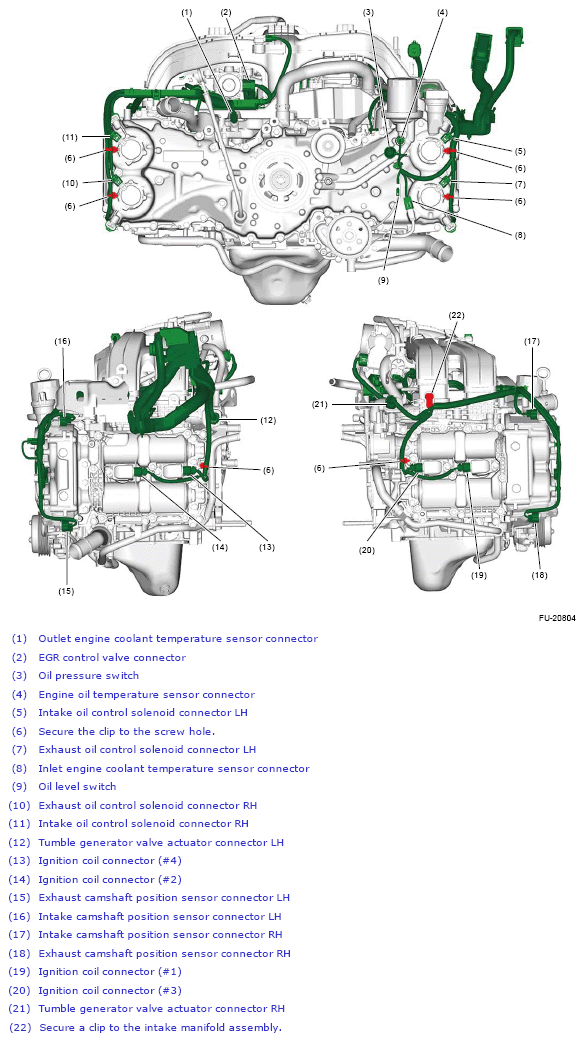

• Structural diagram 3

Courtesy of SUBARU OF AMERICA, INC.
