Fuel Pipe

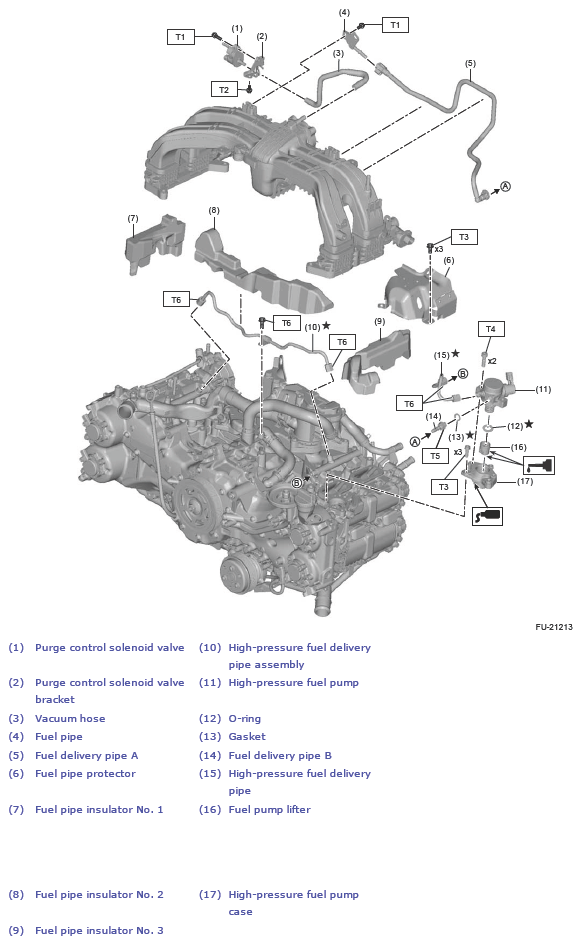

Fig 1: Fuel Pipe (Components With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 12 (1.2, 8.9)

T3: 19 (1.9, 14.0)

T4: 21 (2.1, 15.5)

T5: 48 (4.9, 35.4)

T6:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>HIGH PRESSURE FUEL DELIVERY PIPE>INSTALLATION .
