Engine Wiring Harness: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>REMOVAL .

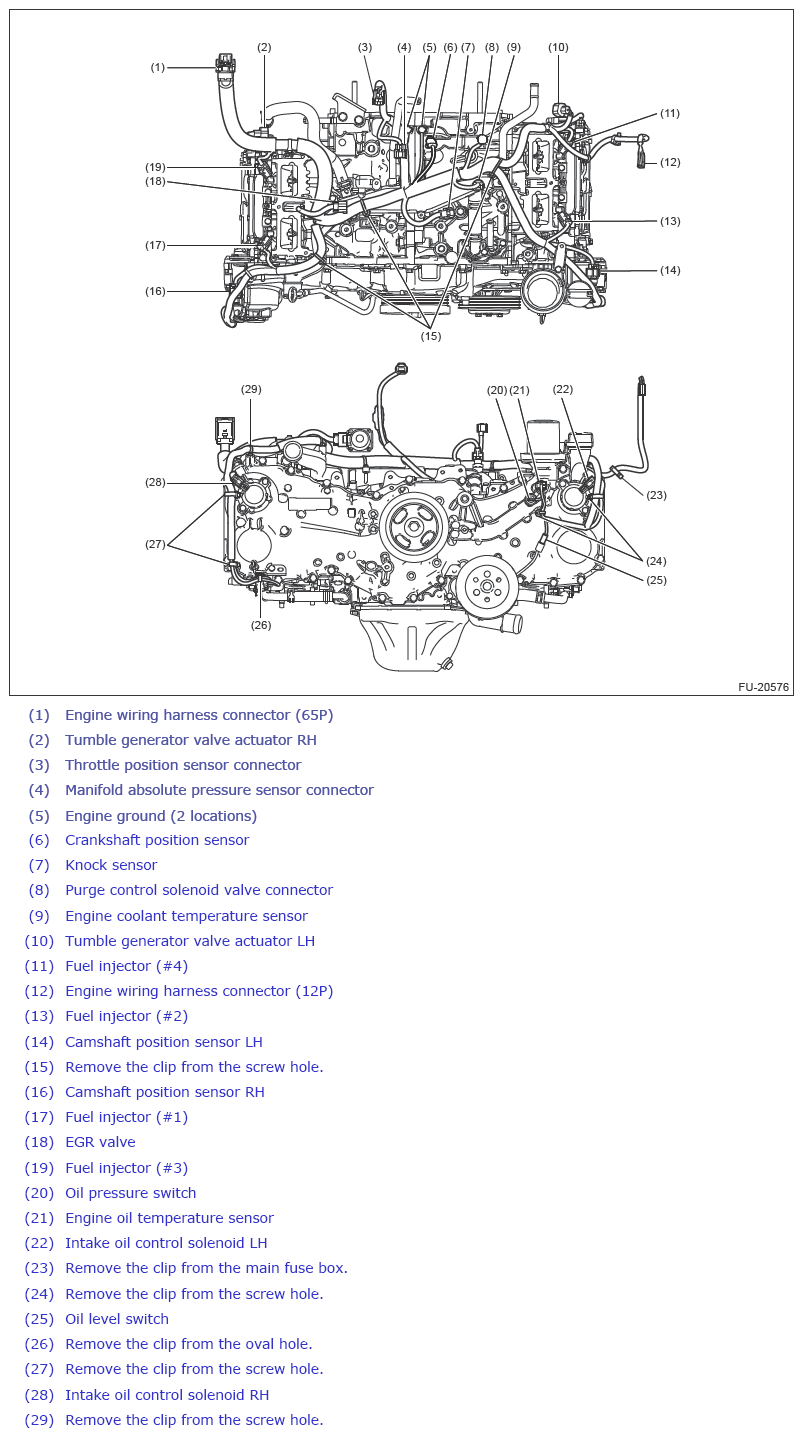

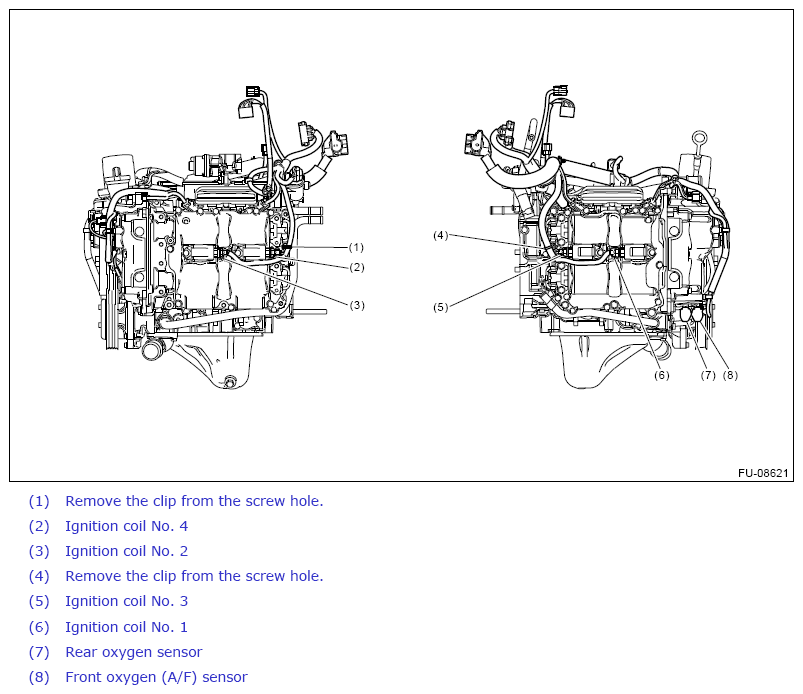

- Disconnect each connector to remove the engine wiring harness.
