Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the ECM. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE CONTROL MODULE (ECM)>REMOVAL . Ref. to FUEL INJECTION (FUEL SYSTEMS) (H6DO)>ENGINE CONTROL MODULE (ECM)>REMOVAL .
Install the ST between the ECM and bulkhead harness and the engine wiring harness. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>GENERAL DESCRIPTION>CAUTION . Ref. to ENGINE (DIAGNOSTICS) (H6DO)>GENERAL DESCRIPTION>CAUTION .
ST 18460AA050 CHECK BOARD
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Turn the ignition switch to ON. (Engine OFF)

Measure the voltage between ECM connector terminals using ST.

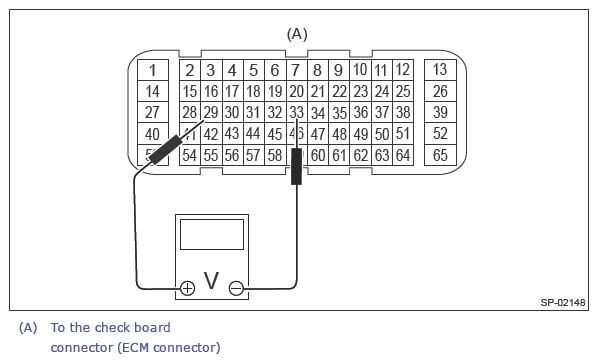

Main sensor side

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Accelerator pedal sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (full closed)	29 (+) and 33 (-)	0.3 - 1.1 V
Main	Depressed (full opened)	29 (+) and 33 (-)	2.3 - 3.8 V

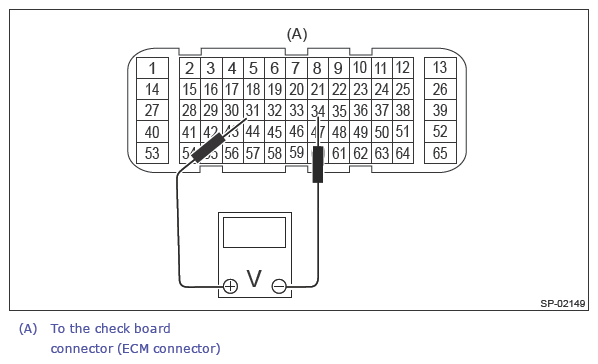

Sub	Not depressed (full closed)	31 (+) and 34 (-)	0.3 - 1.1 V
Sub	Depressed (full opened)	31 (+) and 34 (-)	2.3 - 3.8 V
