Engine Control System (2.5L) (Diagnostics - Introduction): Electrical Component Location: Location: Sensor

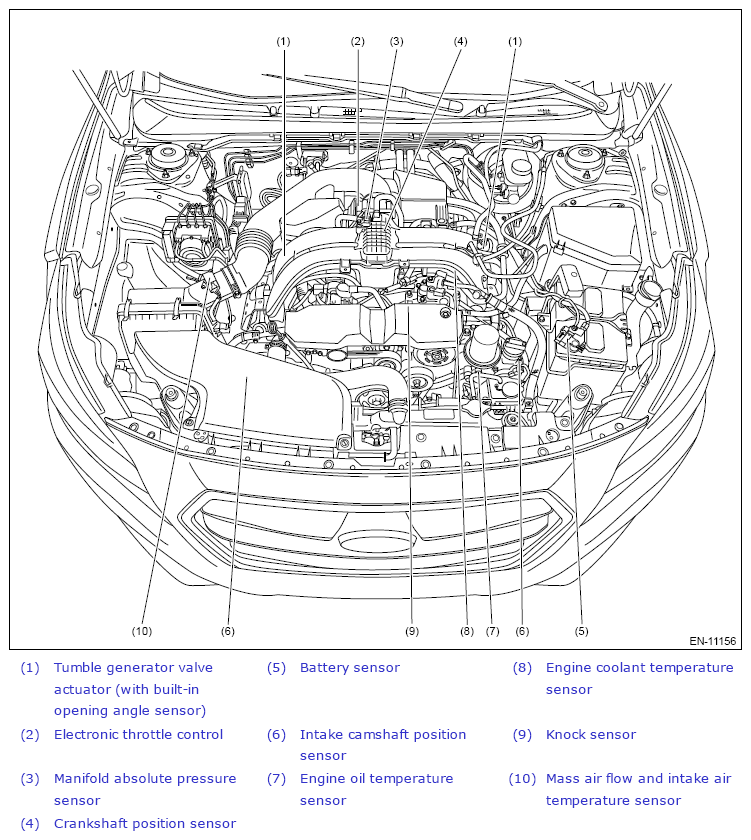

G13252315

Courtesy of SUBARU OF AMERICA, INC.

G13252316

Courtesy of SUBARU OF AMERICA, INC.

G13252317

Courtesy of SUBARU OF AMERICA, INC.

G13252318

Courtesy of SUBARU OF AMERICA, INC.

G13252319

Courtesy of SUBARU OF AMERICA, INC.

G13252320

Courtesy of SUBARU OF AMERICA, INC.

G13252321

Courtesy of SUBARU OF AMERICA, INC.

G13252322

Courtesy of SUBARU OF AMERICA, INC.

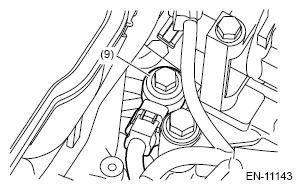

G13252323

Courtesy of SUBARU OF AMERICA, INC.

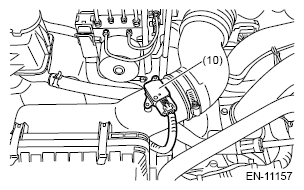

G13252324

Courtesy of SUBARU OF AMERICA, INC.

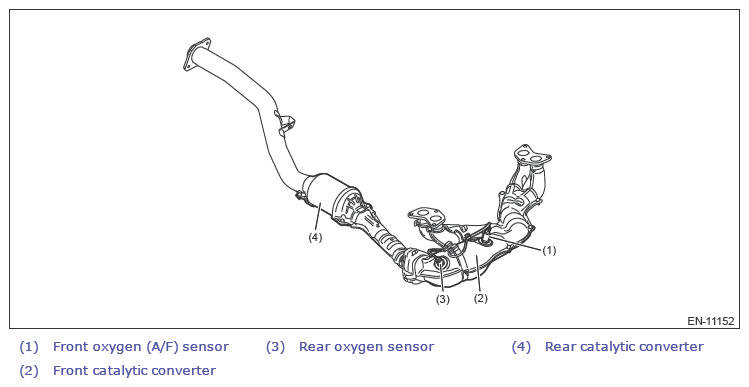

G13252325

Courtesy of SUBARU OF AMERICA, INC.

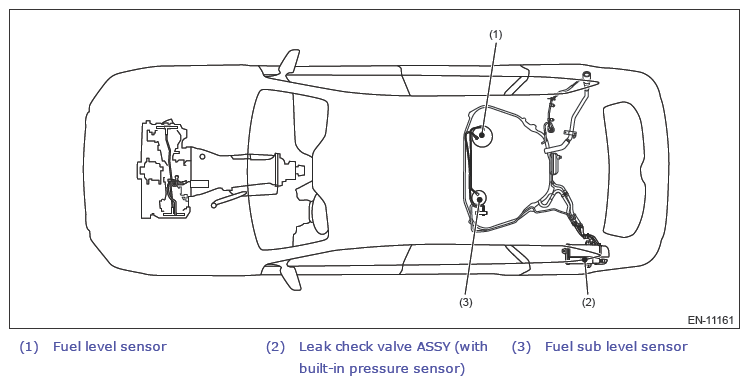

G13252326

Courtesy of SUBARU OF AMERICA, INC.

G13252327

Courtesy of SUBARU OF AMERICA, INC.

G13252328

Courtesy of SUBARU OF AMERICA, INC.

G13252329

Courtesy of SUBARU OF AMERICA, INC.
