Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. (2.5 L model) Ref. to EXHAUST (H4DO)>CENTER EXHAUST PIPE>REMOVAL .
  5. Remove the front exhaust pipe and rear exhaust pipe. (3.6 L model) Ref. to EXHAUST (H6DO)>FRONT EXHAUST PIPE>REMOVAL . Ref. to EXHAUST (H6DO)>REAR EXHAUST PIPE>REMOVAL .
  6. Remove the center exhaust cover.
    G10274676Courtesy of SUBARU OF AMERICA, INC.

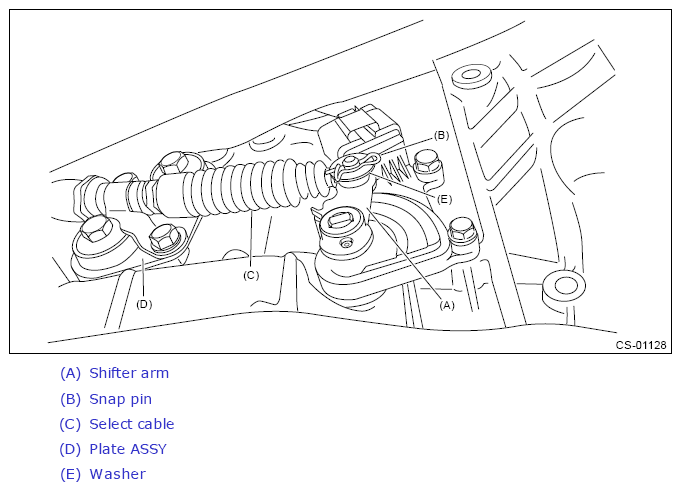

  7. Remove the snap pin and washer from the shifter arm and remove the select cable from the shifter arm.
    CAUTION: Do not apply extra overload while holding the part (a).
    G12392796Courtesy of SUBARU OF AMERICA, INC.
    G13249285Courtesy of SUBARU OF AMERICA, INC.

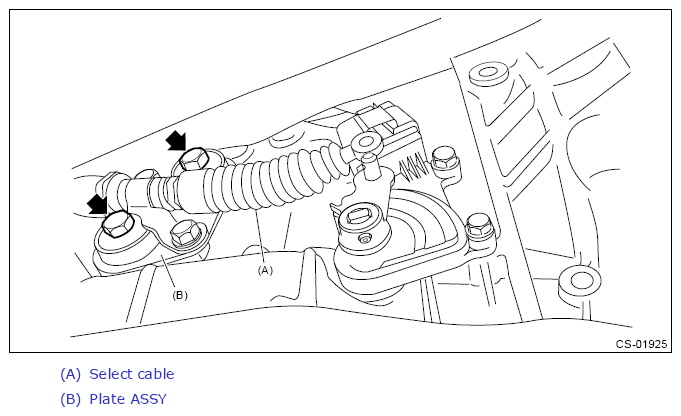

  8. Remove the plate assembly from the transmission case.
    G13249286Courtesy of SUBARU OF AMERICA, INC.

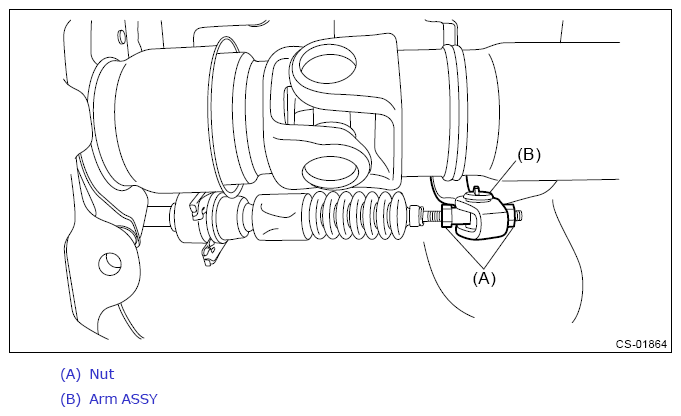

  9. Disconnect the cable from arm assembly.
    CAUTION: Do not apply extra overload while holding the part (a).
    G12392841Courtesy of SUBARU OF AMERICA, INC.
    G13249288Courtesy of SUBARU OF AMERICA, INC.

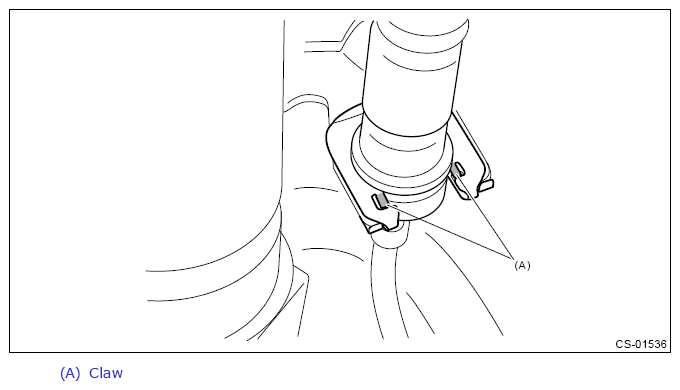

  10. Raise the claw of clamp to remove the cable from bracket.
    G13249289Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select cable from plate assembly.
