Select Lever: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. (2.5 L model) Ref. to EXHAUST (H4DO)>CENTER EXHAUST PIPE>REMOVAL .
  5. Remove the front exhaust pipe and rear exhaust pipe. (3.6 L model) Ref. to EXHAUST (H6DO)>FRONT EXHAUST PIPE>REMOVAL . Ref. to EXHAUST (H6DO)>REAR EXHAUST PIPE>REMOVAL .
  6. Remove the center exhaust cover.
    G10274676Courtesy of SUBARU OF AMERICA, INC.

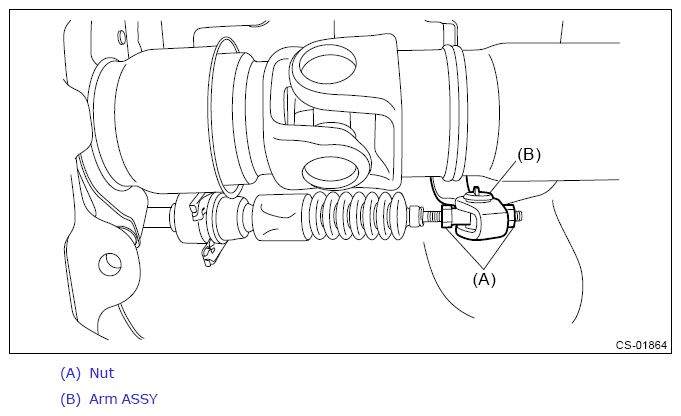

  7. Remove the cable from arm assembly.
    CAUTION: Do not apply extra overload while holding the part (a).
    G12392841Courtesy of SUBARU OF AMERICA, INC.
    G13249257Courtesy of SUBARU OF AMERICA, INC.

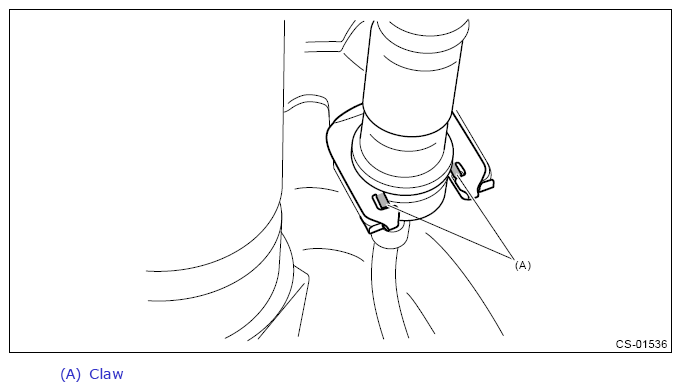

  8. Raise the claw of clamp and remove the cable.
    G13249258Courtesy of SUBARU OF AMERICA, INC.
  9. Lower the vehicle.
  10. Lower the cover grip AT vertically toward the lever.
    G10274679Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the clamp grip pin.
    G10274680Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the grip assembly.
    G10274681Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the rod COMPL.
    G10274682Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the console front cover assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  15. Remove the console box. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  16. Remove the console front side cover assemblies RH and LH. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  17. Disconnect the harness connector.
    G10274683Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the four bolts to remove the select lever assembly.
    G10274684Courtesy of SUBARU OF AMERICA, INC.
  19. Turn over the gasket and remove the harness clip from the select lever.
    G10274685Courtesy of SUBARU OF AMERICA, INC.
  20. Remove the indicator cover.
    G10274686Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the harness connector from the select lever COMPL.
    G10274687Courtesy of SUBARU OF AMERICA, INC.
  22. Remove the harness from the select lever COMPL.
    G10274688Courtesy of SUBARU OF AMERICA, INC.
  23. Remove the housing and the blind.

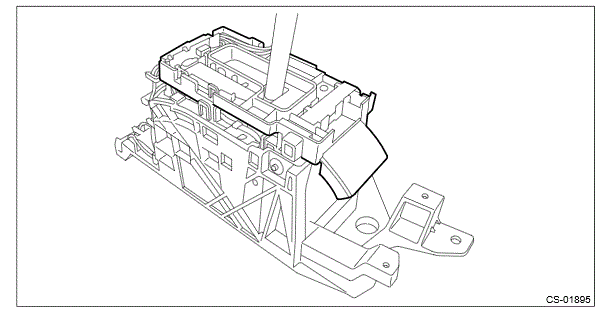

    G13249269Courtesy of SUBARU OF AMERICA, INC.

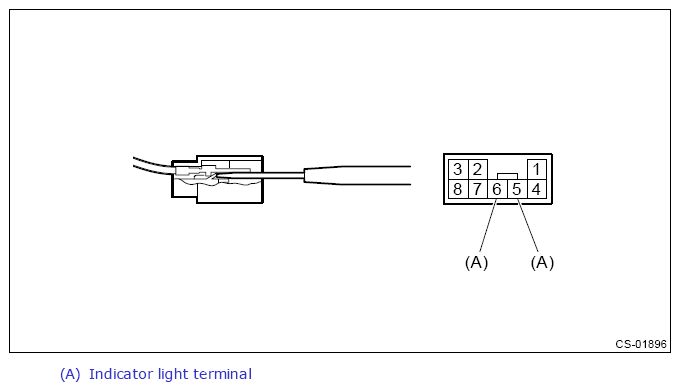

  24. Remove the terminal of the indicator light using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.
G13249270Courtesy of SUBARU OF AMERICA, INC.
