Fuel Pipe Insulator No. 3

  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>INTAKE MANIFOLD>REMOVAL .

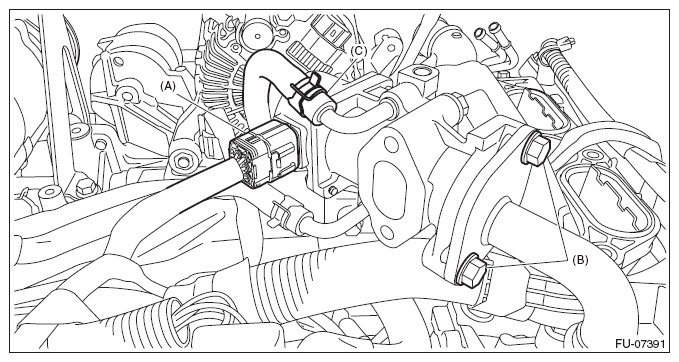

  3. Disconnect the connector (A) from the EGR control valve.
  4. Remove the bolts (B) securing the EGR cooler to the EGR control valve.
  5. Remove the preheater hose (C) from the EGR control valve.
    G09479651Courtesy of SUBARU OF AMERICA, INC.

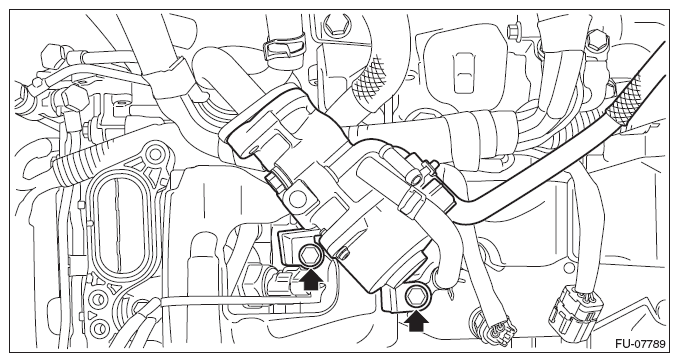

  6. Remove the EGR control valve.
    G09479652Courtesy of SUBARU OF AMERICA, INC.

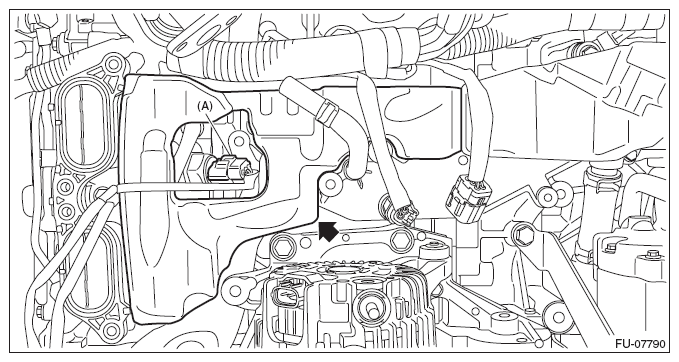

  7. Disconnect the connector (A) on the fuel pressure sensor, and remove the fuel pipe insulator No. 3.
    G09479653Courtesy of SUBARU OF AMERICA, INC.
