Fuel Tank Protector: Installation

Install in the reverse order of removal.

NOTE: Use a new self-locking nut.

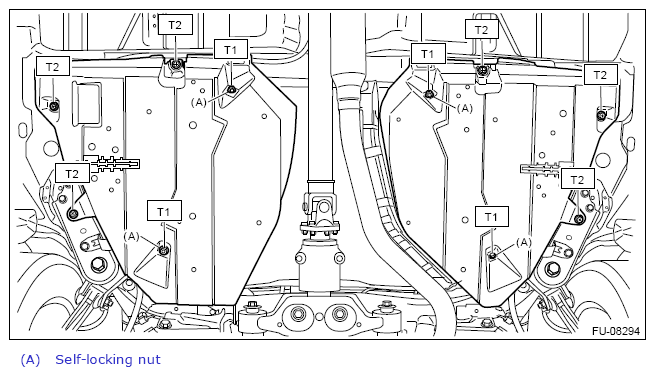

Tightening torque:

T1: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

G13258549Courtesy of SUBARU OF AMERICA, INC.
