Fuel Tank Protector: Removal

  1. Lift up the vehicle.

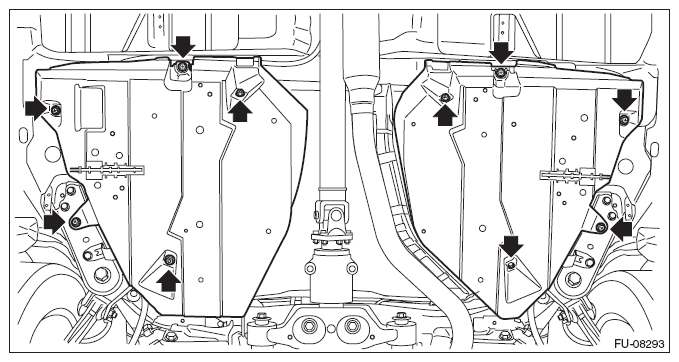

  2. Remove the bolt and nuts and remove the fuel tank protector.
    G10264902Courtesy of SUBARU OF AMERICA, INC.
