Fuel Tank

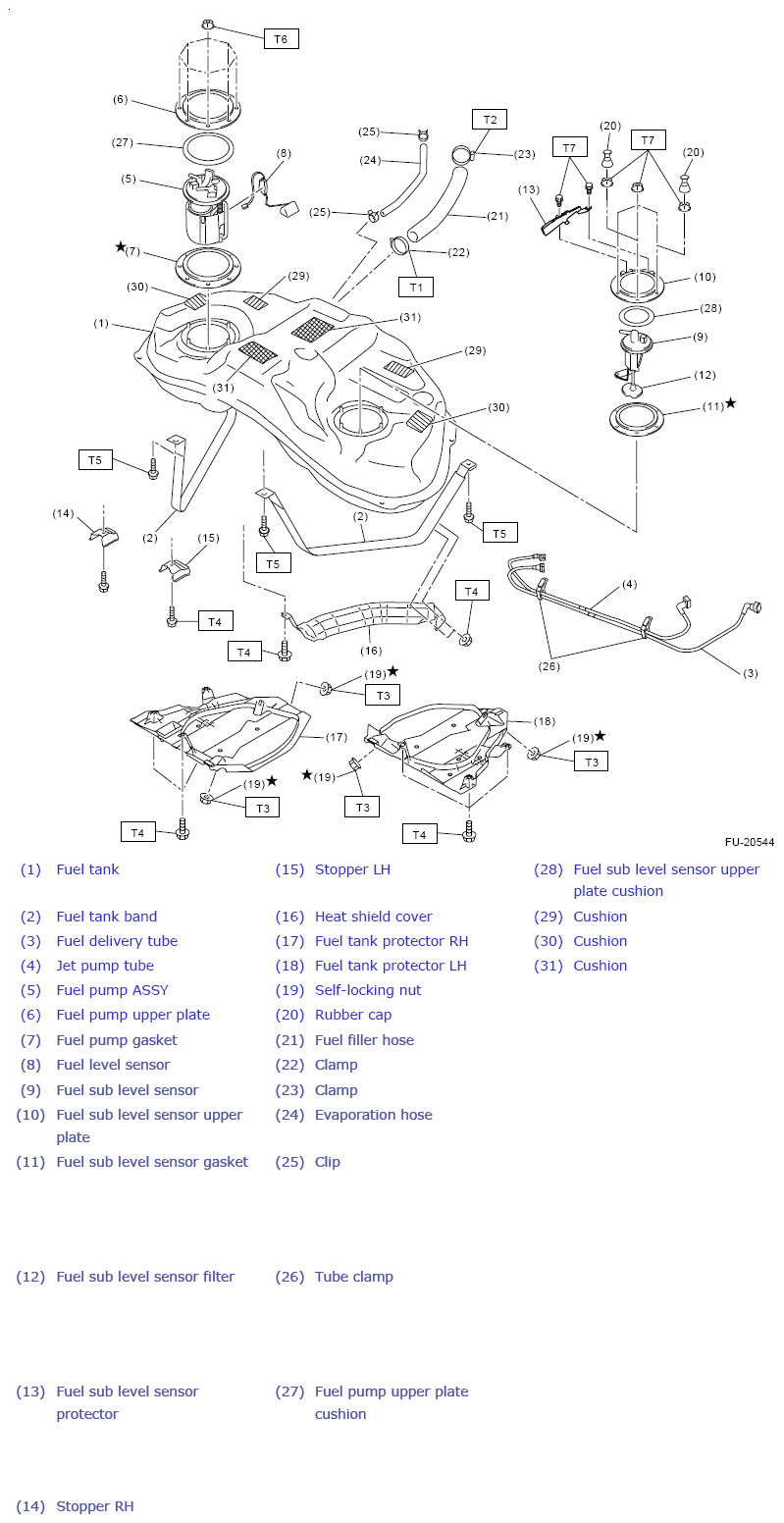

Fig 1: Explode View Of Fuel Tank Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 2.5 (0.3, 1.8)

T3: 9 (0.9, 6.6)

T4: 18 (1.8, 13.3)

T5:  Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>FUEL TANK>INSTALLATION .

T6:  Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>FUEL PUMP>INSTALLATION .

T7:  Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>FUEL SUB LEVEL SENSOR>INSTALLATION .
