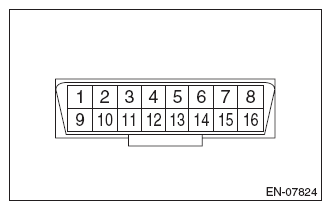

Data Link Connector: Note
This connector is used for Subaru Select Monitor.
CAUTION:
Do not connect any scan tools other than Subaru Select Monitor or general scan tool because the circuit for Subaru Select Monitor may be damaged.
| Terminal No. | Contents |
|---|---|
| 1 | Blank |
| 2 | Blank |
| 3 | Blank |
| 4 | Ground |
| 5 | Ground |
| 6 | CAN communication (Hi) |
| 7 | Blank |
| 8 | IG |
| 9 | Blank |
| 10 | Blank |
| 11 | Blank |
| 12 | Blank |
| 13 | Blank |
| 14 | CAN communication (Lo) |
| 15 | A/B batch operation |
| 16 | Power supply |
