Electrical Specification

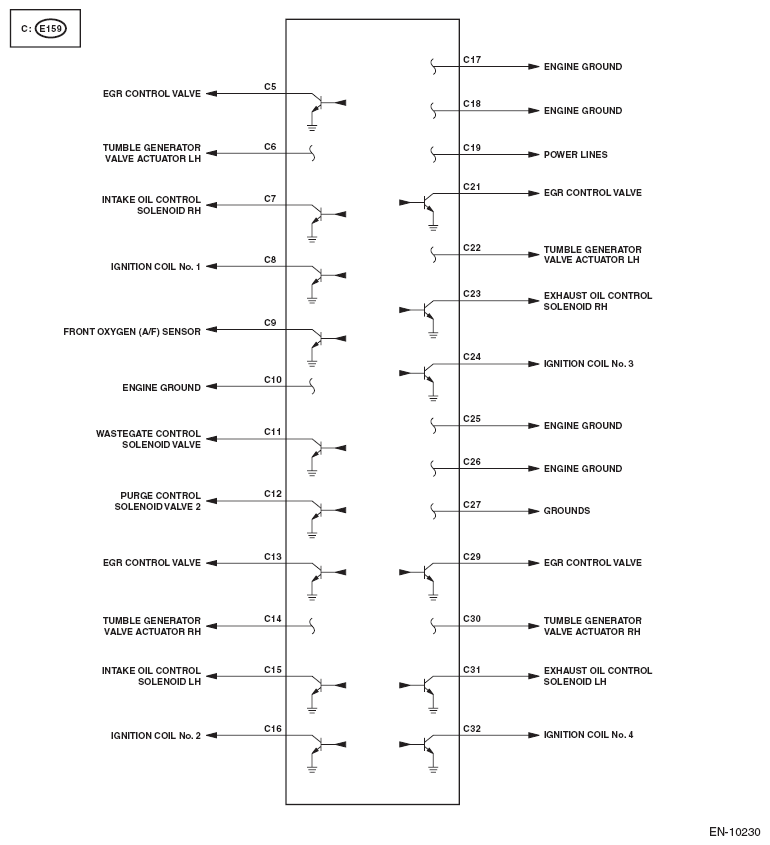

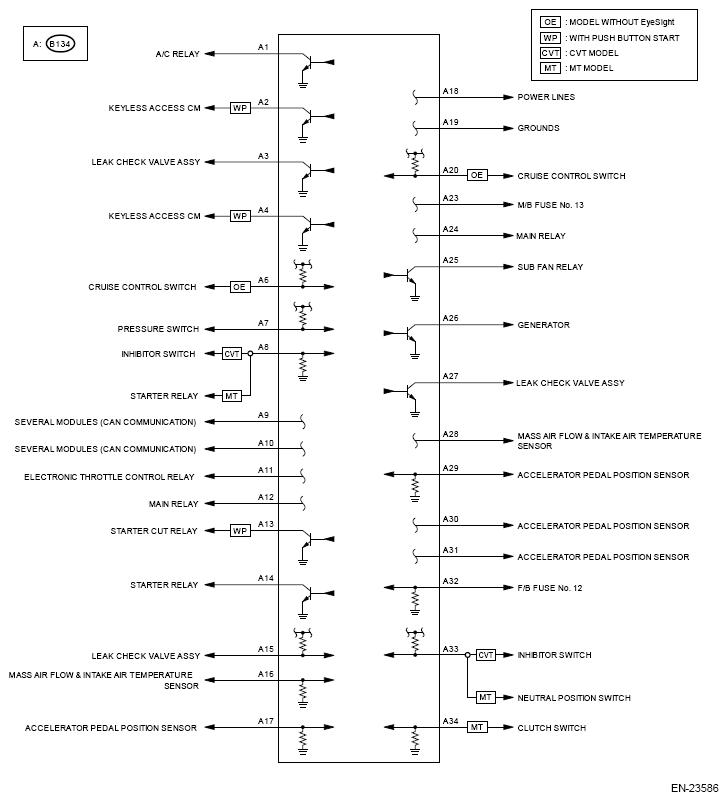

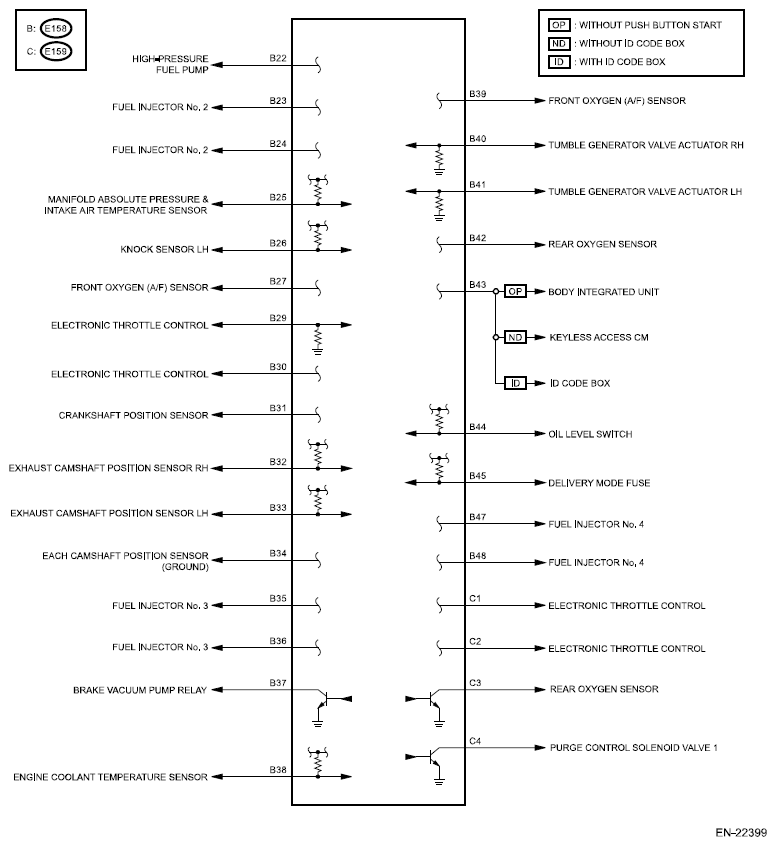

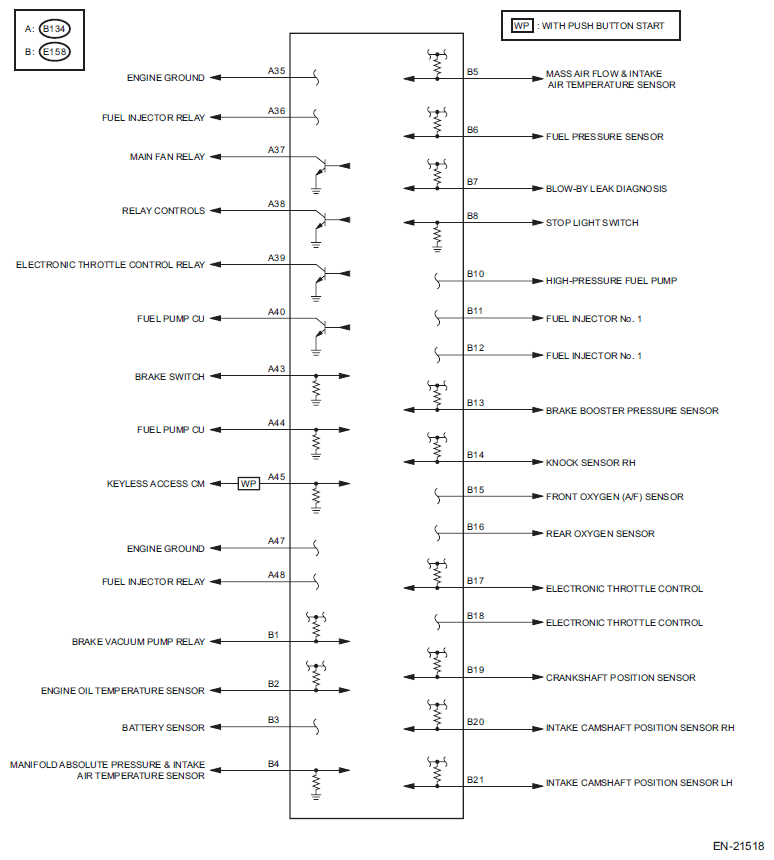

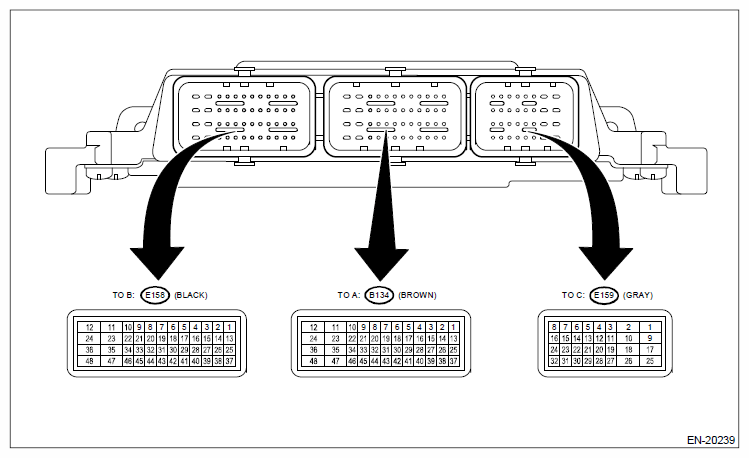

| Description | connector No. | Terminal No. | Signal (V) | Remarks | ||
|---|---|---|---|---|---|---|
| Ignition SW ON (Engine OFF) | Engine ON (Idling) | |||||
| Crankshaft position sensor | (+) signal | E158 | 19 | 0 or 5 | 0 or 5 | Waveforms 1 and 10 |
| Ground | E158 | 31 | 0 | 0 | - | |
| Intake camshaft position sensor | RH | E158 | 20 | 0 or 5 | 0 or 5 | Waveform 1 |
| LH | E158 | 21 | 0 or 5 | 0 or 5 | Waveform 1 | |
| Exhaust camshaft position sensor | RH | E158 | 32 | 0 or 5 | 0 or 5 | Waveform 1 |
| LH | E158 | 33 | 0 or 5 | 0 or 5 | Waveform 1 | |
| Camshaft position sensor ground | E158 | 34 | 0 | 0 | - | |
| Front oxygen (A/F) sensor | IP (+) signal | E158 | 15 | 2 - 3 | 2 - 4 | Waveform 2 |
| VS (+) signal | E158 | 27 | 2 - 3 | 3 - 5 | Waveform 2 | |
| Rear oxygen sensor | COM signal | E158 | 39 | 2 - 3 | 3 - 4 | - |
| Heater signal | E159 | 9 | Battery voltage | 0 or battery voltage | Waveform 4 | |
| (+) signal | E158 | 16 | 2 - 3 | 2 - 3 | Waveform 3 | |
| (-) signal | E158 | 42 | 2 - 3 | 2 - 3 | - | |
| Heater signal | E159 | 3 | Battery voltage | 0 or battery voltage | Waveform 4 | |
| Air flow sensor | Signal | B134 | 16 | 0 | 1 | - |
| Ground | B134 | 28 | 0 | 0 | - | |
| Intake air temperature sensor (Integrated with air flow sensor) | E158 | 5 | 2 - 3 | 2 - 3 | - | |
| Engine coolant temperature sensor | E158 | 38 | 1 - 3 | 1 - 3 | - | |
| Engine oil temperature sensor | E158 | 2 | 1 - 3 | 1 - 3 | - | |
| Manifold absolute pressure sensor | E158 | 4 | 2 | 1 | - | |
| Intake air temperature sensor (Integrated with manifold absolute pressure sensor) | E158 | 25 | 2 - 3 | 2 - 3 | - | |
| Fuel pressure sensor | E158 | 6 | 1 | 1 | - | |
| Knock sensor | RH | E158 | 14 | 2.5 | 2.5 | - |
| LH | E158 | 26 | 2.5 | 2.5 | - | |
| Accelerator pedal position sensor | Main power supply | B134 | 30 | 5 | 5 | - |
| Main signal | B134 | 17 | Fully closed: 0.4 - 1 Fully opened: 2.4 - 3.7 |
Fully closed: 0.4 - 1 Fully opened: 2.4 - 3.7 |
Waveforms 2, 3, 5 and 6 | |
| Main ground | B134 | 31 | 0 | 0 | - | |
| Sub signal | B134 | 29 | Fully closed: 0.4 - 1 Fully opened: 2.4 - 3.7 |
Fully closed: 0.4 - 1 Fully opened: 2.4 - 3.7 |
- | |
| Tumble generator valve actuator RH | Position signal | E158 | 40 | 1 | 1 | Fully closed: 1 Fully opened: 3 Waveform 5 |
| Motor open | E159 | 14 | 0 | 0 | When in operation: Waveform Waveform 5 | |
| Motor closed | E159 | 30 | 0 | 0 | When in operation: Waveform Waveform 5 |
|
| Tumble generator valve actuator LH | Position signal | E158 | 41 | 3 | 3 | Fully closed: 3 Fully opened: 1 Waveform 6 |
| Motor open | E159 | 6 | 0 | 0 | When in operation: Waveform Waveform 6 |
|
| Motor closed | E159 | 22 | 0 | 0 | When in operation: Waveform Waveform 6 |
|
| Intake oil control solenoid | RH | E159 | 7 | Battery voltage | 0 or battery voltage | Drive frequency: 300 Hz Waveform 7 |
| LH | E159 | 15 | Battery voltage | 0 or battery voltage | Drive frequency: 300 Hz Waveform 7 |
|
| Exhaust oil control solenoid | RH | E159 | 23 | Battery voltage | 0 or battery voltage | Drive frequency: 300 Hz Waveform 7 |
| LH | E159 | 31 | Battery voltage | 0 or battery voltage | Drive frequency: 300 Hz Waveform 7 |
|
| Wastegate control solenoid valve | E159 | 11 | Battery voltage | Battery voltage | When in operation: 0 or battery voltage |
|
| Purge control solenoid valve 1 | E159 | 4 | Battery voltage | Battery voltage | When in operation: 0 or battery voltage Waveform 9 |
|
| Purge control solenoid valve 2 | E159 | 12 | Battery voltage | Battery voltage | When in operation: 0 or battery voltage Waveform 9 |
|
| Ignition control | #1 | E159 | 8 | 0 | 0 or 5 | Waveform 10 |
| EGR control valve | #2 | E159 | 16 | 0 | 0 or 5 | Waveform 10 |
| #3 | E159 | 24 | 0 | 0 or 5 | Waveform 10 | |
| #4 | E159 | 32 | 0 | 0 or 5 | Waveform 10 | |
| A (+) | E159 | 5 | 0 or battery voltage | 0 or battery voltage | - | |
| A (-) | E159 | 21 | 0 or battery voltage | 0 or battery voltage | - | |
| B (+) | E159 | 13 | 0 or battery voltage | 0 or battery voltage | - | |
| B (-) | E159 | 29 | 0 or battery voltage | 0 or battery voltage | - | |
| Fuel pump control unit | Control signal | B134 | 40 | ON: 0 or battery voltage OFF: 0 | 0 or battery voltage | Waveform 8 |
| Diagnostic signal | B134 | 44 | ON: Battery voltage OFF: 0 | Battery voltage | - | |
| High-pressure fuel pump | (Hi) | E158 | 10 | - | - | Measurement prohibited |
| (Lo) | E158 | 22 | - | - | Measurement prohibited | |
| Fuel injector | Power supply 1 | B134 | 36 | Battery voltage | Battery voltage | - |
| Power supply 2 | B134 | 48 | Battery voltage | Battery voltage | - | |
| #1 (+) | E158 | 11 | 0 | - | Measurement is prohibited while the engine is running. | |
| #1 (-) | E158 | 12 | 0 | - | ||
| #2 (+) | E158 | 23 | 0 | - | ||
| #2 (-) | E158 | 24 | 0 | - | ||
| #3 (+) | E158 | 35 | 0 | - | ||
| #3 (-) | E158 | 36 | 0 | - | ||
| #4 (+) | E158 | 47 | 0 | - | ||
| #4 (-) | E158 | 48 | 0 | - | ||
| Electronic throttle control | Sensor power supply | E158 | 18 | 5 | 5 | - |
| Main signal | E158 | 17 | Fully closed: Approx. 0.7 Fully open: Approx. 3.9 | Fully closed: Approx. 0.7 Fully open: Approx. 3.9 | - | |
| Sub signal | E158 | 29 | Fully closed: Approx. 4.4 Fully open: Approx. 1.1 | Fully closed: Approx. 4.4 Fully open: Approx. 1.1 | - | |
| Ground | E158 | 30 | 0 | 0 | - | |
| Motor (+) | E159 | 2 | 0 | Duty waveform | Drive frequency: 10 kHz | |
| Motor (-) | E159 | 1 | 0 | Duty waveform | Drive frequency: 10 kHz | |
| Electronic throttle control motor power supply | B134 | 11 | Battery voltage | Battery voltage | - | |
| Electronic throttle relay control | B134 | 39 | 0 | 0 | - | |
| Starter relay control | B134 | 14 | Model with push button start: 3 Models without push button start: 0 | 3 | Cranking: Waveforms 11 and 12 | |
| Self-shutoff relay control | B134 | 38 | 1 | 1 | - | |
| Starter cut relay control | B134 | 13 | 0 | 0 | Model with push button start Cranking: Waveform 11 | |
| Main fan relay control | B134 | 37 | Battery voltage | Battery voltage | When in operation: 0 or battery voltage | |
| Sub fan relay control | B134 | 25 | Battery voltage | Battery voltage | When in operation: 0 or battery voltage | |
| A/C relay control | B134 | 1 | Battery voltage | Battery voltage | When in operation: 0 or battery voltage | |
| Starter switch | B134 | 45 | 0 | 0 | Model with push button start Cranking: Waveform 11 | |
| Starter switch 2 | B134 | 8 | 0 | 0 | Cranking: Battery voltage | |
| Ignition switch | B134 | 32 | Battery voltage | Battery voltage | - | |
| Pressure switch | B134 | 7 | Battery voltage | Battery voltage | - | |
| Neutral position switch | B134 | 33 | ON: 0 OFF: Battery voltage | ON: 0 OFF: Battery voltage | Switch is ON when select lever is in "P" range or "N" range. | |
| Cruise control | Main switch | B134 | 20 | ON: 0 OFF: 5 |
ON: 0 OFF: 5 |
Model without EyeSight |
| Command switch | B134 | 6 | When operating nothing: 3.5 - 4.5 When operating RES/+: 2.5 - 3.5 When operating SET/-: 0.5 - 1.5 |
When operating CANCEL: 0 - 0.5 When operating nothing: 3.5 - 4.5 When operating RES/+: 2.5 - 3.5 When operating SET/-: 0.5 - 1.5 When operating CANCEL: 0 - 0.5 |
Model without EyeSight | |
| Clutch switch | B134 | 34 | When clutch pedal is depressed: 0 When clutch pedal is released: Battery voltage |
When clutch pedal is depressed: 0 When clutch pedal is released: Battery voltage |
MT model | |
| Brake switch 1 (Brake switch) | B134 | 43 | When brake pedal is depressed: 0 When brake pedal is released: Battery voltage |
When brake pedal is depressed: 0 When brake pedal is released: Battery voltage |
- | |
| Brake switch 2 (Stop light switch) | E158 | 8 | When brake pedal is depressed: Battery voltage When brake pedal is released: 0 |
When brake pedal is depressed: Battery voltage When brake pedal is released: 0 |
- | |
| Oil level switch | E158 | 44 | 0 | 0 | Oil level LOW: Battery voltage | |
| Accessory cut request | B134 | 2 | Battery voltage | Battery voltage | Model with push button start Cranking: 0 Waveform 11 |
|
| Engine speed output | B134 | 4 | Battery voltage | 0 or battery voltage | Model with push button start Waveform 12 | |
| Generator control | B134 | 26 | 0 or 6.4 | 0 or 6.4 | - | |
| CAN communication | (Hi) | B134 | 10 | - | - | - |
| (Lo) | B134 | 9 | - | - | - | |
| LIN communication | E158 | 3 | - | - | - | |
| Blow-by leak diagnosis | E158 | 7 | 0 | 0 | At the time of open circuit (fault): 5 | |
| Immobilizer communication | E158 | 43 | - | - | - | |
| Delivery mode switch | E158 | 45 | Battery voltage | Battery voltage | When the fuse is installed: 0 | |
| Control module power supply | B134 | 12 | Battery voltage | Battery voltage | - | |
| B134 | 24 | Battery voltage | Battery voltage | - | ||
| Back-up power supply | B134 | 23 | Battery voltage | Battery voltage | - | |
| Sensor power supply | B134 | 18 | 5 | 5 | - | |
| E159 | 19 | 5 | 5 | - | ||
| Leak check valve assembly | Switching valve | B134 | 27 | Battery voltage | Battery voltage | Operating: 0 |
| Pressure sensor | B134 | 15 | 1 - 4 | 1 - 4 | When ignition switch is turned to ON: atmospheric pressure | |
| Vacuum pump | B134 | 3 | Battery voltage | Battery voltage | Operating: 0 | |
| Brake booster pressure sensor | E158 | 13 | 1 - 2 | 1 - 2 | When brake pedal is released. | |
| Brake vacuum pump | E158 | 1 | 0 | 0 | - | |
| Brake vacuum pump relay | E158 | 37 | Battery voltage | Battery voltage | - | |
| Sensor ground | B134 | 19 | 0 | 0 | - | |
| E159 | 27 | 0 | 0 | - | ||
| Ground | Engine 1 | B134 | 35 | 0 | 0 | - |
| Engine 2 | B134 | 47 | 0 | 0 | - | |
| Engine 3 | E159 | 10 | 0 | 0 | - | |
| Engine 4 | E159 | 18 | 0 | 0 | - | |
| Engine 5 | E159 | 26 | 0 | 0 | - | |
| Engine 6 | E159 | 17 | 0 | 0 | - | |
| Engine 7 | E159 | 25 | 0 | 0 | - | |
Measuring condition:
NOTE:
- Perform measurement after warming up the engine.
- For measurement of the waveform of the crankshaft position sensor, we recommend using the DST-i oscilloscope function or a general oscilloscope.
- For CVT models, set the select lever to "P" range or "N" range position, and for MT models, place the gear shift lever in the neutral position.
- Turn the A/C to OFF.
- Turn all the accessory switches to OFF.
- Waveforms vary depending on a measurement environment and vehicle condition.

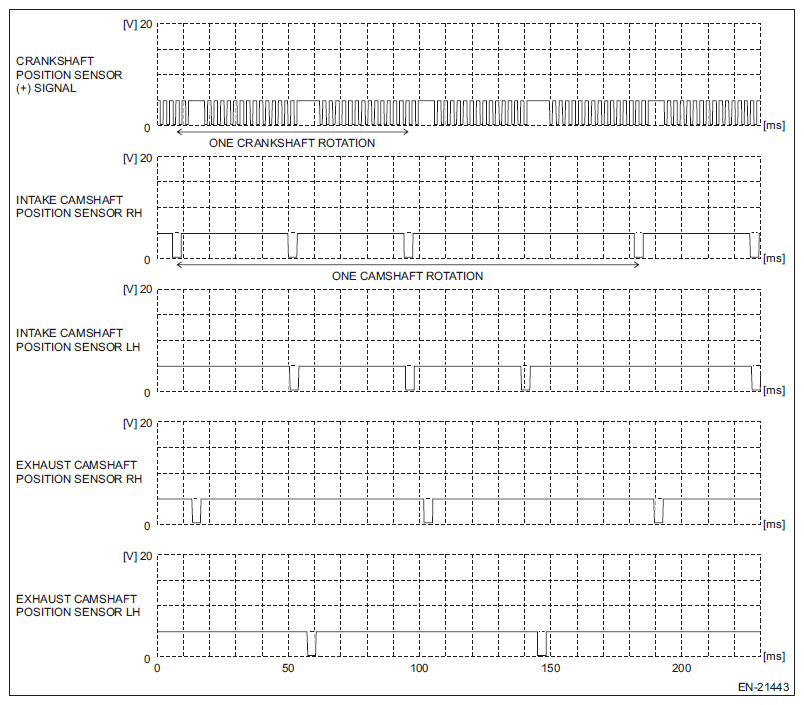

- Waveform 1
Measured terminal Crankshaft position sensor (+) signal (E158) No. 19 (+) - Engine ground 3 (E159) No. 10 (-): Intake camshaft position sensor RH (E158) No. 20 (+) - Engine ground 3 (E159) No. 10 (-): Intake camshaft position sensor LH (E158) No. 21 (+) - Engine ground 3 (E159) No. 10 (-): Exhaust camshaft position sensor RH (E158) No. 32 (+) - Engine ground 3 (E159) No. 10 (-): Exhaust camshaft position sensor LH (E158) No. 33 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition While engine idling - Waveform 2

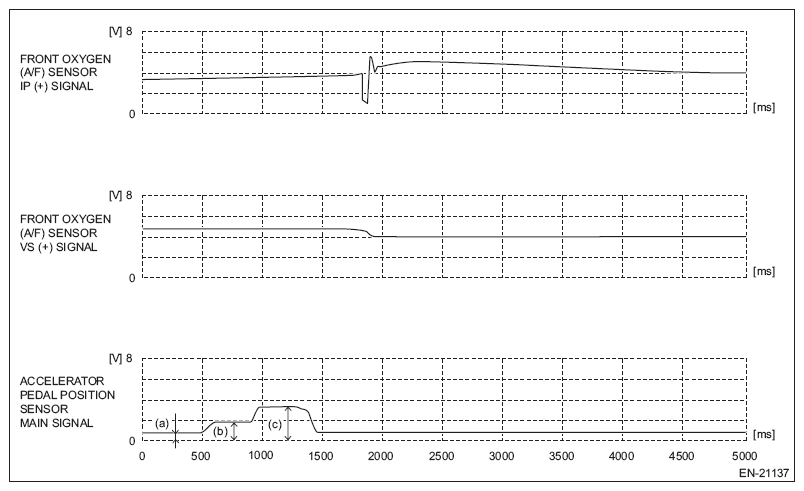

Measured terminal Front oxygen (A/F) sensor IP (+) signal (E158) No. 15 (+) - Engine ground 3 (E159) No. 10 (-): Front oxygen (A/F) sensor VS (+) signal (E158) No. 27 (+) - Engine ground 3 (E159) No. 10 (-): Accelerator pedal position sensor main signal (B134) No. 17 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal half open (c) Accelerator pedal fully opened - Waveform 3

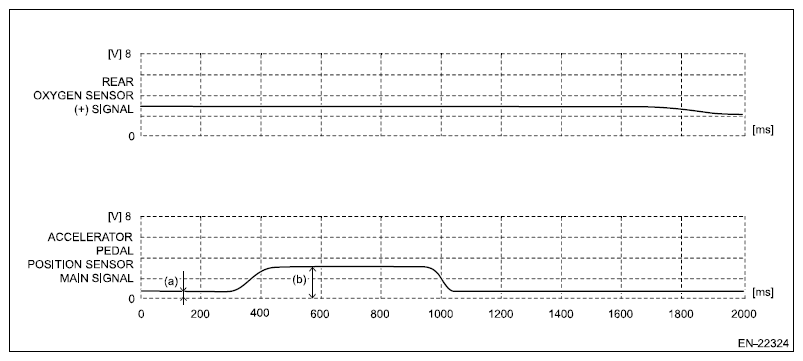

Measured terminal Rear oxygen sensor (+) signal (E158) No. 16 (+) - (E158) No. 42 (-): Accelerator pedal position sensor main signal (B134) No. 17 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened - Waveform 4

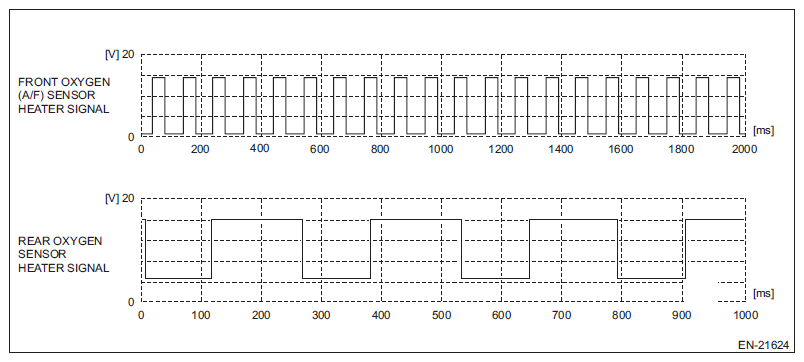

Measured terminal Front oxygen (A/F) sensor heater signal (E159) No. 9 (+) - Engine ground 3 (E159) No. 10 (-): Rear oxygen sensor heater signal (E159) No. 3 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition While engine idling (with the heater on) - Waveform 5

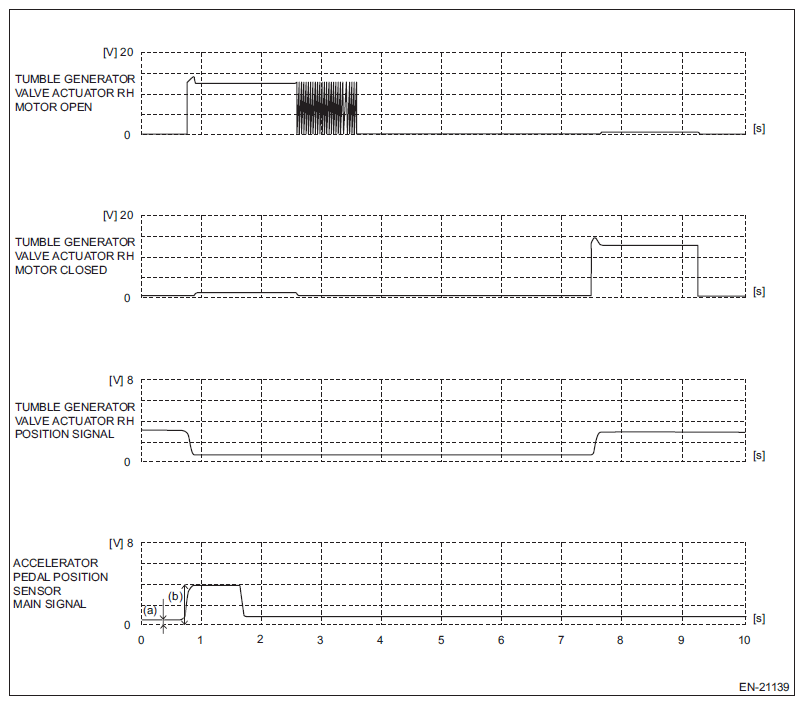

Measured terminal Tumble generator valve actuator RH motor open (E159) No. 14 (+) - Engine ground 3 (E159) No. 10 (-): Tumble generator valve actuator RH motor closed (E159) No. 30 (+) - Engine ground 3 (E159) No. 10 (-): Tumble generator valve actuator RH position signal (E158) No. 40 (+) - Engine ground 3 (E159) No. 10 (-): Accelerator pedal position sensor main signal (B134) No. 17 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened - Waveform 6

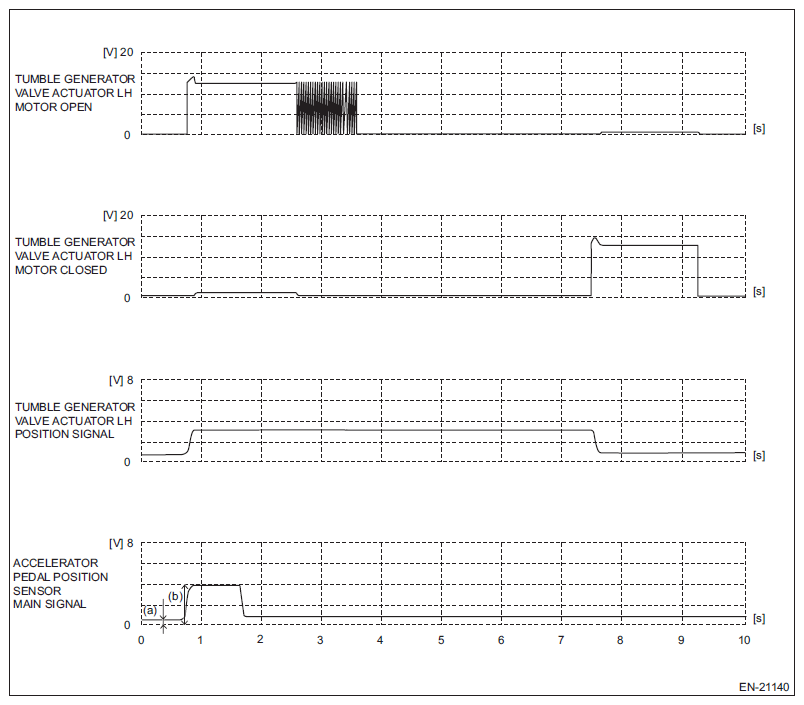

Measured terminal Tumble generator valve actuator LH motor open (E159) No. 6 (+) - Engine ground 3 (E159) No. 10 (-): Tumble generator valve actuator LH motor closed (E159) No. 22 (+) - Engine ground 3 (E159) No. 10 (-): Tumble generator valve actuator LH position signal (E158) No. 41 (+) - Engine ground 3 (E159) No. 10 (-): Accelerator pedal position sensor main signal (B134) No. 17 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened - Waveform 7

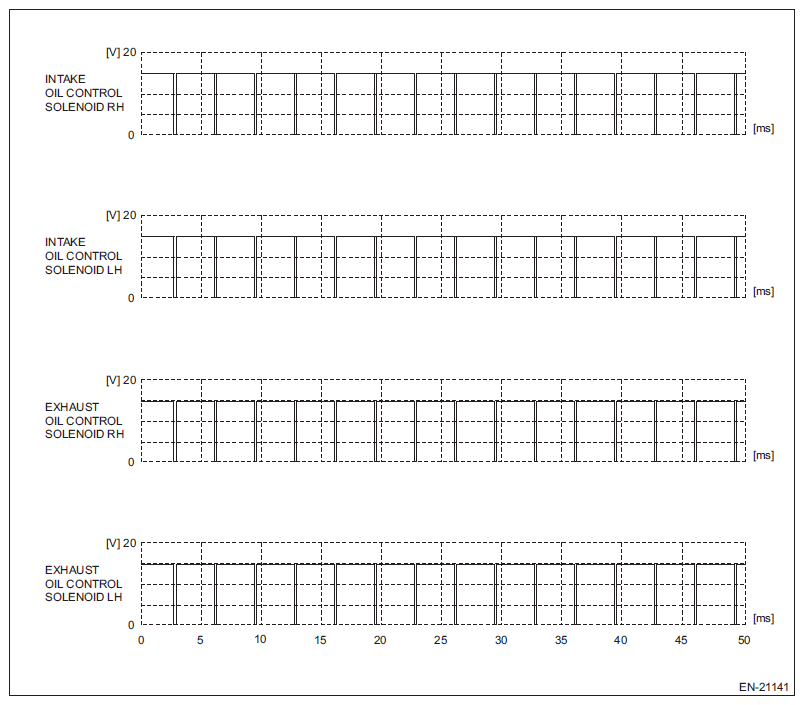

Measured terminal Intake oil control solenoid RH (E159) No. 7 (+) - Engine ground 3 (E159) No. 10 (-): Intake oil control solenoid LH (E159) No. 15 (+) - Engine ground 3 (E159) No. 10 (-): Exhaust oil control solenoid RH (E159) No. 23 (+) - Engine ground 3 (E159) No. 10 (-): Exhaust oil control solenoid LH (E159) No. 31 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition While engine idling - Waveform 8

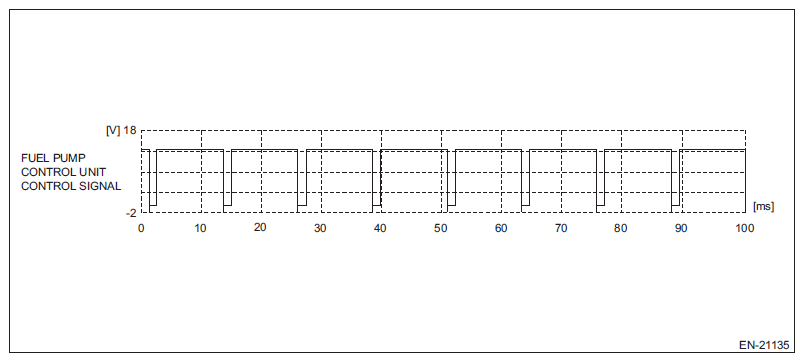

Measured terminal Fuel pump control unit control signal (B134) No. 40 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition While engine idling - Waveform 9

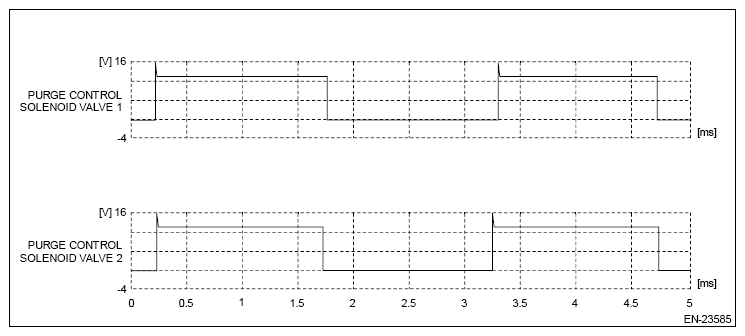

Measured terminal Purge control solenoid valve 1 (E159) No. 4 (+) - Engine ground 3 (E159) No. 10 (-): Purge control solenoid valve 2 (E159) No. 12 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition During execution of active test using Subaru Select Monitor - Waveform 10

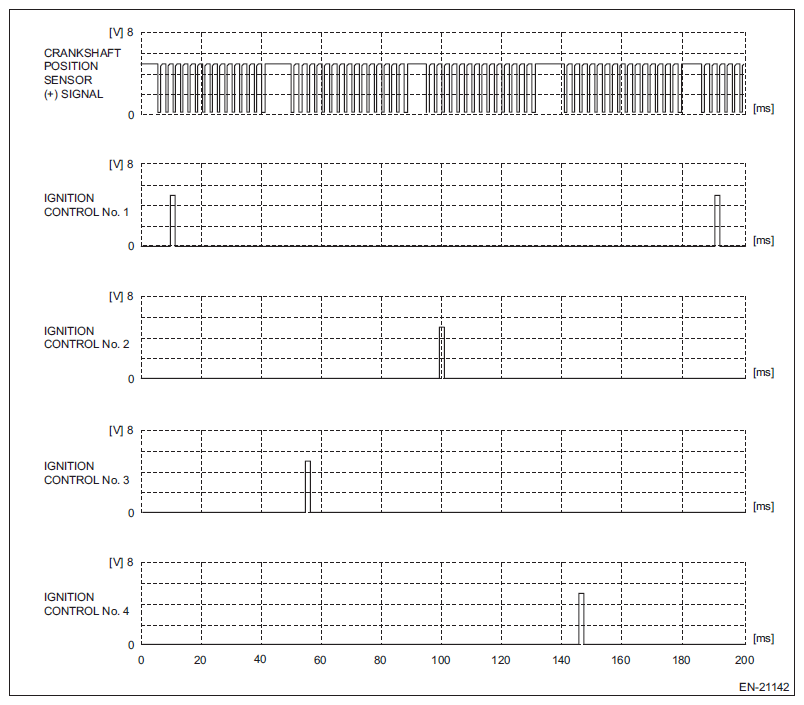

Measured terminal Crankshaft position sensor (+) signal (E158) No. 19 (+) - Engine ground 3 (E159) No. 10 (-): Ignition control #1 (E159) No. 8 (+) - Engine ground 3 (E159) No. 10 (-): Ignition control #2 (E159) No. 16 (+) - Engine ground 3 (E159) No. 10 (-): Ignition control #3 (E159) No. 24 (+) - Engine ground 3 (E159) No. 10 (-): Ignition control #4 (E159) No. 32 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition While engine idling - Waveform 11

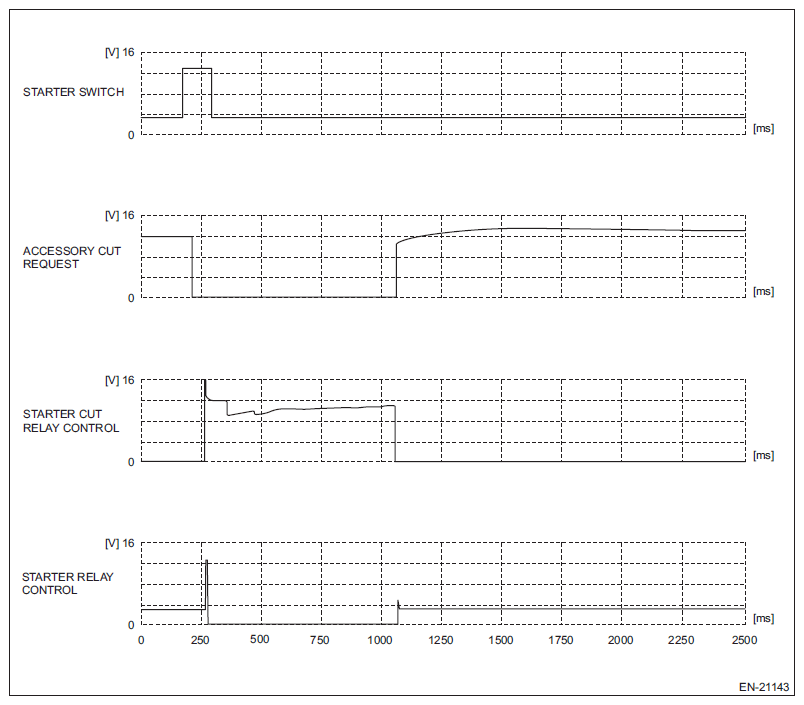

Measured terminal Starter switch (B134) No. 45 (+) - Engine ground 3 (E159) No. 10 (-): Accessory cut request (B134) No. 2 (+) - Engine ground 3 (E159) No. 10 (-): Starter cut relay control (B134) No. 13 (+) - Engine ground 3 (E159) No. 10 (-): Starter relay control (B134) No. 14 (+) - Engine ground 3 (E159) No. 10 (-): Measuring condition When engine is started - Waveform 12

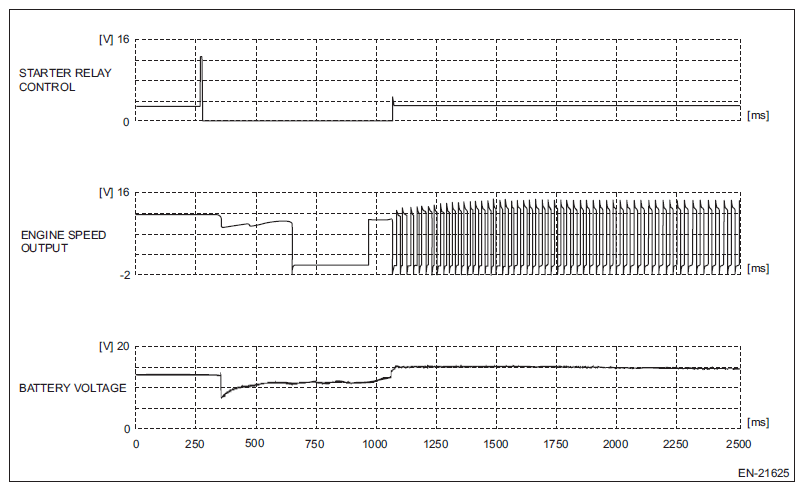

| Measured terminal | Starter relay control (B134) No. 14 (+) - Engine ground 3 (E159) No. 10 (-): |
| Engine speed output (B134) No. 4 (+) - Engine ground 3 (E159) No. 10 (-): | |
| Battery voltage (battery terminal) (+) - Engine ground 3 (E159) No. 10 (-): | |
| Measuring condition | When engine is started |
