Drive Plate: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .

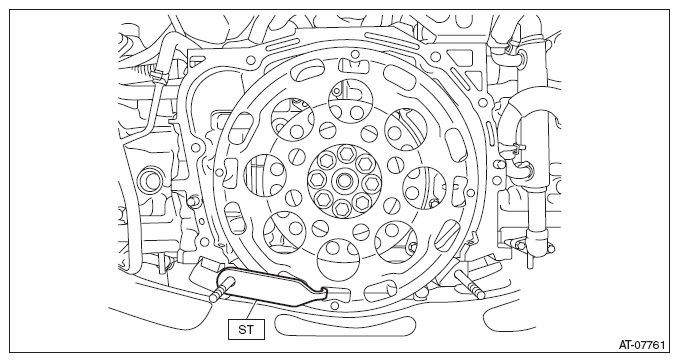

- Set the ST.NOTE: Set the ST to the drive plate referring to the illustration.
ST 498497300 CRANKSHAFT STOPPER - Remove the drive plate and reinforcement drive plate.
