Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe (rear). Refer to EXHAUST (EXCEPT FOR STI)>CENTER EXHAUST PIPE>REMOVAL .

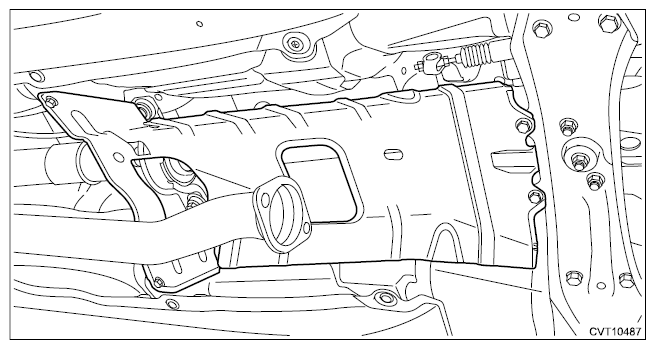

  5. Remove the center exhaust cover.
    G12448281Courtesy of SUBARU OF AMERICA, INC.

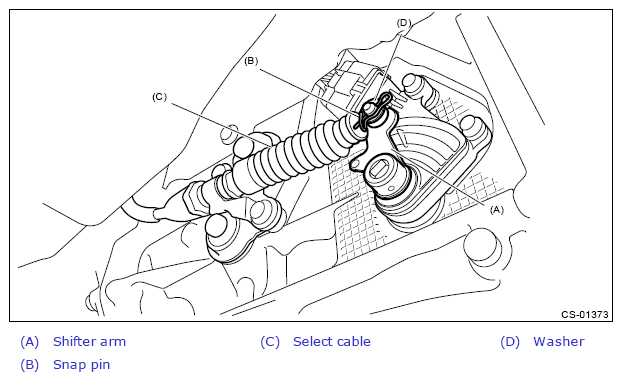

  6. Remove the snap pin and washer from the shifter arm.
    CAUTION: Do not apply extra overload while holding the part (a).
    G12392796Courtesy of SUBARU OF AMERICA, INC.
    G13260489Courtesy of SUBARU OF AMERICA, INC.

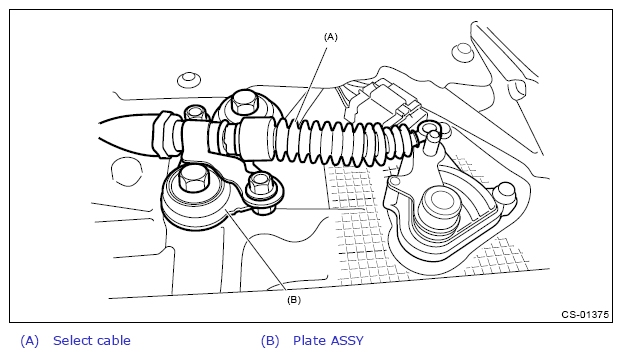

  7. Remove the plate assembly.
    G13260490Courtesy of SUBARU OF AMERICA, INC.

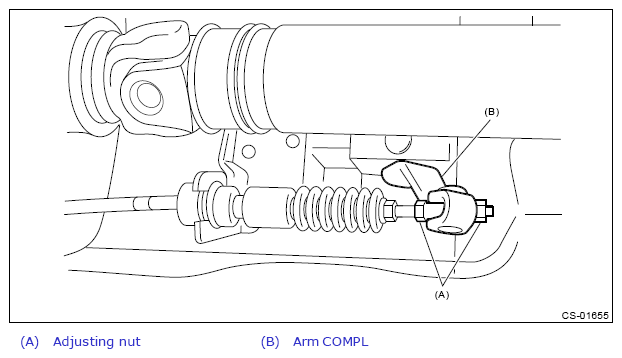

  8. Disconnect the cable from arm COMPL.
    CAUTION: Do not apply extra overload while holding the part (a).
    G12392841Courtesy of SUBARU OF AMERICA, INC.
    G13260492Courtesy of SUBARU OF AMERICA, INC.

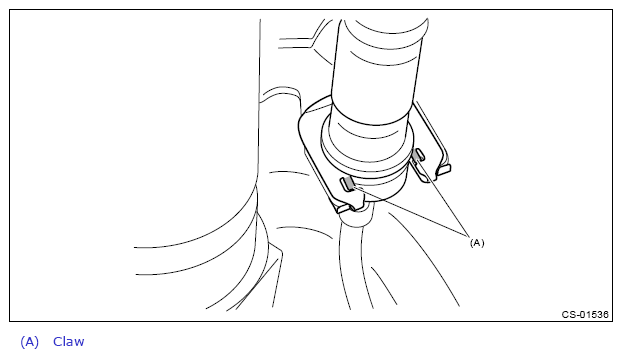

  9. Raise the claw of clamp and remove the cable.
    G13260493Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the select cable from plate assembly.
