Select Lever: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Lift up the vehicle.
Remove the center exhaust pipe (rear). Refer to EXHAUST (EXCEPT FOR STI)>CENTER EXHAUST PIPE>REMOVAL .
Remove the center exhaust cover.

Courtesy of SUBARU OF AMERICA, INC.

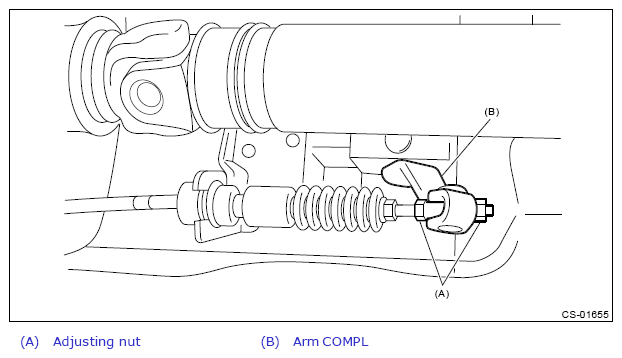

Disconnect the cable from the arm COMPL.
CAUTION: Do not apply extra overload while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

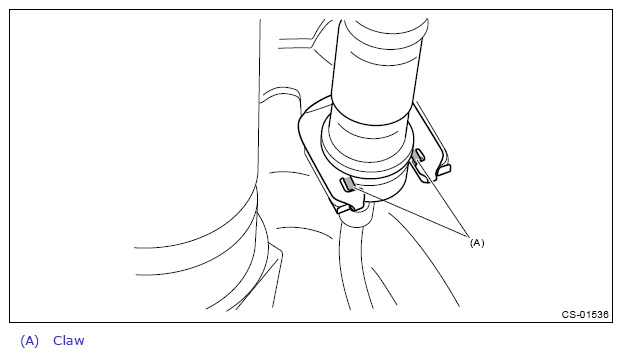

Raise the claw of clamp and remove the cable.

Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Shift the select lever to "N" range.
Lower the boot assembly vertically toward the lever.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp grip pin.

Courtesy of SUBARU OF AMERICA, INC.
Remove the grip assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the console box assembly. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
Remove the cover - shift lever. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
Remove the panel center LWR LH and RH. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
Disconnect the connector, and remove the indicator assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clips.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector.

Courtesy of SUBARU OF AMERICA, INC.
Remove the select lever assembly.

Courtesy of SUBARU OF AMERICA, INC.
