Fuel Line

• Fuel line 1

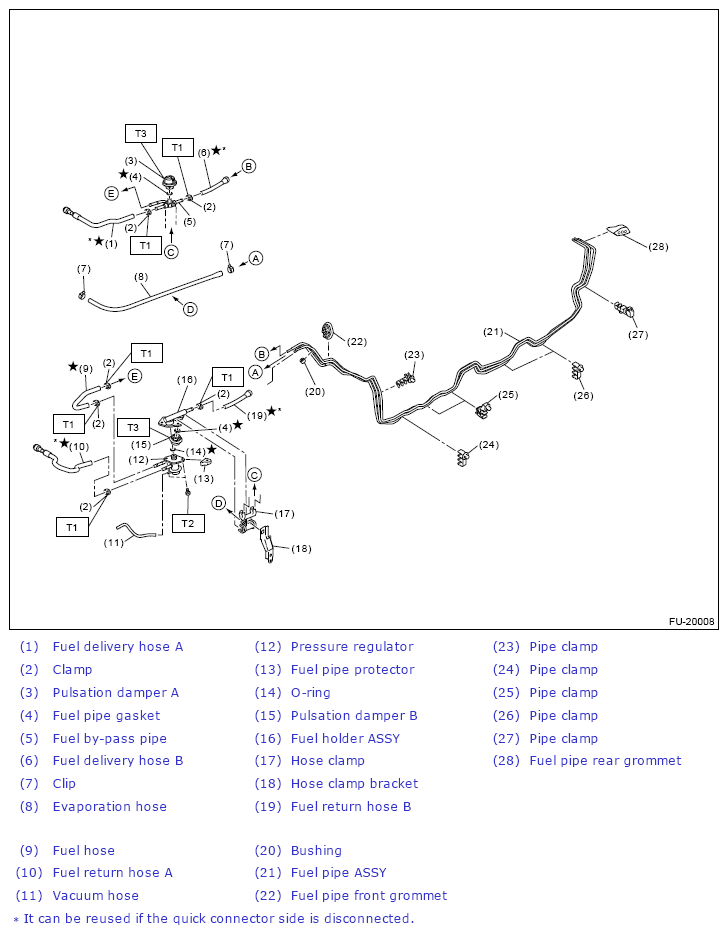

Fig 1: Explode View Of Fuel Line Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.25 (0.1, 0.9)

T2: 6.4 (0.7, 4.7)

T3: 21.6 (2.2, 15.9

• Fuel line 2

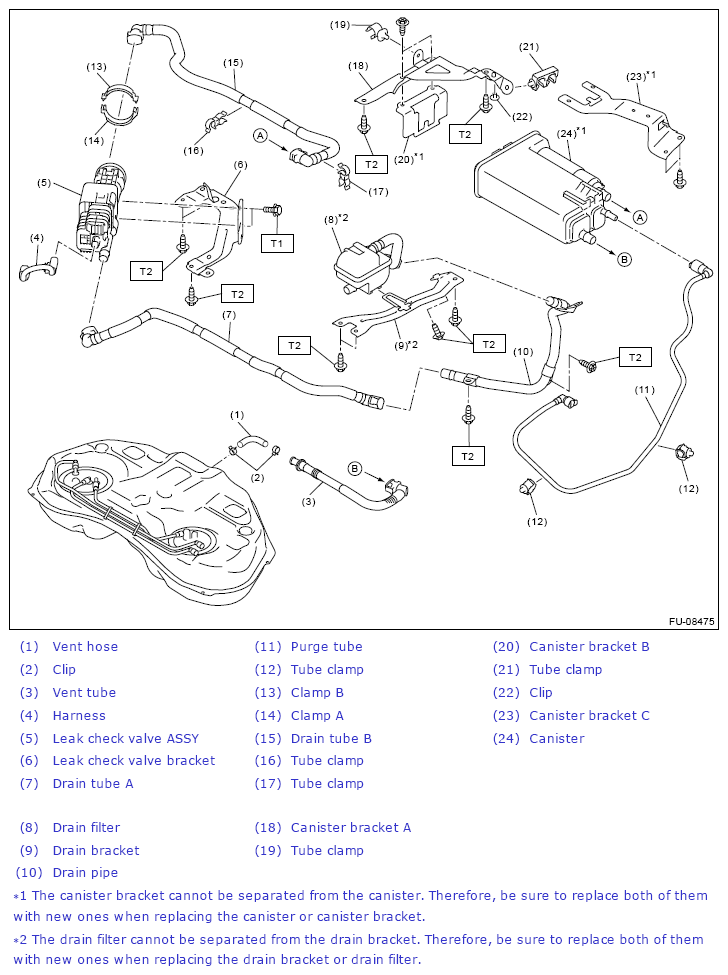

Fig 2: Explode View Of Fuel Line 2 Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.4 (0.6, 4.0)

T2: 7.5 (0.8, 5.5)
