Intake Side

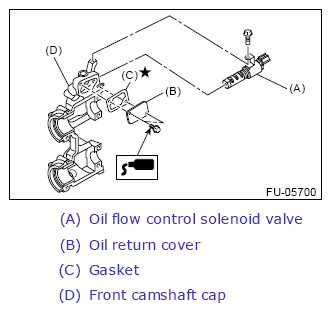

1. Install the oil flow control solenoid valve.

   Tightening torque:

   6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

2. Apply liquid gasket to the two bolts securing oil return cover.

   Liquid gasket:

   THREE BOND 1324 (Part No. 004403042) or equivalent

3. Attach the oil return cover and gasket.

Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
